GLT44016

Features: ·262,144 words by 16 bits organization.·Fast access time and cycle time.·DualCASInput.·Low power dissipation.·Read-Modify-Write,RAS-Only Refresh,CAS-Before-RAS Refresh, Hidden Refresh and Test Mode Capability.·512 refresh cycles per 8ms.·Available in 40-Pin 400 mil SOJ and 40/44 Pin TSOP...

product image

GLT44016 Picture
See larger image
SeekIC No. : 004353837 Detail

GLT44016: Features: ·262,144 words by 16 bits organization.·Fast access time and cycle time.·DualCASInput.·Low power dissipation.·Read-Modify-Write,RAS-Only Refresh,CAS-Before-RAS Refresh, Hidden Refresh and ...

GLT44016 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
GLT44016
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·262,144 words by 16 bits organization.
·Fast access time and cycle time.
·DualCASInput.
·Low power dissipation.
·Read-Modify-Write,RAS-Only Refresh,CAS-Before-RAS Refresh, Hidden Refresh and Test Mode Capability.
·512 refresh cycles per 8ms.
·Available in 40-Pin 400 mil SOJ and 40/44 Pin TSOP(II)
·Single 5.0V±10% Power Supply.
·All inputs and Outputs are TTL compatible.
·Extended Data-Out(EDO) Page Mode operation.


Pinout

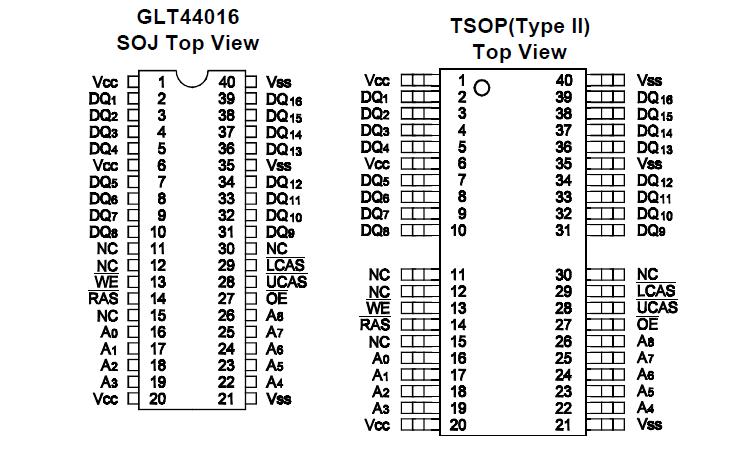

Connection Diagram


Specifications

Operating Temperature, TA (ambient).............-0 to +70
Storage Temperature(plastic)......................-55 to +150
Voltage Relative to VSS.................................-1.0V to + 7.0V
Short Circuit Output Current.........................................50mA
Power Dissipation..........................................................1.0W


Description

The GLT44016 is a 262,144 x 16 bit high-performance CMOS dynamic random access memory. The GLT44016 offers Fast Page mode with Extended Data Output, and has both BYTE WRITE and WORD WRITE access cycles via two CAS pins. The GLT44016 has symmetric address and accepts 512-cycle refresh in 8ms interval.

All inputs of GLT44016 are TTL compatible. EDO Page Mode operation allows random access up to 512 x 16 bits within a page, with cycle times as short as 10ns.

The GLT44016 is best suited for graphics, and DSP applications requiring high performance memories.
