Part Number: GS71116
Description: The GS71116 is a high speed CMOS static RAM organized as 65,536-words by 16-bits. Static design eliminates the need for...
- Table of contents:
GS71116
-
Suppliers
DataSheet
General Description
GS71116 General Description
The GS71116 is a high speed CMOS static RAM organized as 65,536-words by 16-bits. Static design eliminates the need for external clocks or timing strobes. Operating on a single 3.3V power supply and all inputs and outputs are TTL compatible. The GS71116 is available in a 6x8 mm Fine Pitch BGA package as well as in 400 mil SOJ and 400 mil TSOP Type-II packages.
GS71116 Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply Voltage | VDD | 0.5 to +4.6 | V |
| Input Voltage | VIN | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Output Voltage | VOUT | 0.5 to VDD +0.5 ( 4.6 V max.) |
V |
| Allowable power dissipation | PD | 0.7 | W |
| Storage temperature | TSTG | 55 to 150 |
GS71116 Features
• Fast access time: 10, 12, 15ns
• CMOS low power operation: 100/85/70 mA at min. cycle time.
• Single 3.3V ± 0.3V power supply
• All inputs and outputs are TTL compatible
• Byte control
• Fully static operation
• Industrial Temperature Option: -40° to 85°C
• Package line up
J: 400mil, 44 pin SOJ package
TP: 400mil, 44 pin TSOP Type II package
U: 6 mm x 8 mm Fine Pitch Ball Grid Array package
• CMOS low power operation: 100/85/70 mA at min. cycle time.
• Single 3.3V ± 0.3V power supply
• All inputs and outputs are TTL compatible
• Byte control
• Fully static operation
• Industrial Temperature Option: -40° to 85°C
• Package line up
J: 400mil, 44 pin SOJ package
TP: 400mil, 44 pin TSOP Type II package
U: 6 mm x 8 mm Fine Pitch Ball Grid Array package

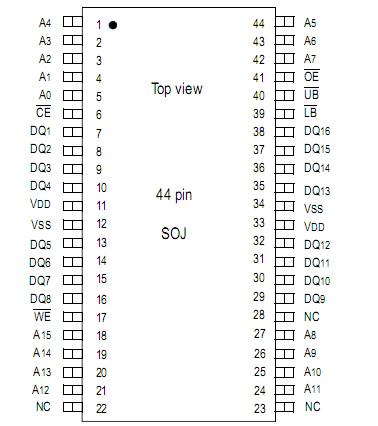

GS71116 Connection Diagram
GS71116
