General Description
HI1172 General Description
HI1172 is a 6-bit, CMOS A/D converter for video use. The adoption of a 2-step parallel conversion achieves speeds of 20 MSPS minimum, 35 MSPS typical.
HI1172 Maximum Ratings
Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Reference Voltage (VRT, VRB) . . . . . . . . . . . . . . . . . . .. VDD to VSS
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . .VDD to VSS
Digital Input Voltage (CLK) . . . . . . . . . . . . . . . . . . . . .. VDD to VSS
Digital Output Voltage (VOH, VOL) . . . . . . . . . . . . . . .. . VDD to VSS
Reference Voltage (VRT, VRB) . . . . . . . . . . . . . . . . . . .. VDD to VSS
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . .VDD to VSS
Digital Input Voltage (CLK) . . . . . . . . . . . . . . . . . . . . .. VDD to VSS
Digital Output Voltage (VOH, VOL) . . . . . . . . . . . . . . .. . VDD to VSS
HI1172 Features
• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-Bit
• Maximum Sampling Frequency . . . . . . . . . . . 20 MSPS
• Low Power Consumption at 20 MSPS (Typ)
(Reference Current Excluded) . . . . . . . . . . . . . . .40mW
• Built-In Sample and Hold Circuit
• Three-State TTL Compatible Output
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Single
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . .4pF
• Reference Impedance . . . . . . . . . . . . . . . . . . 250Ω (Typ)
HI1172 Typical Application
• Video Digitizing
• Wireless Communications
• Wireless Communications

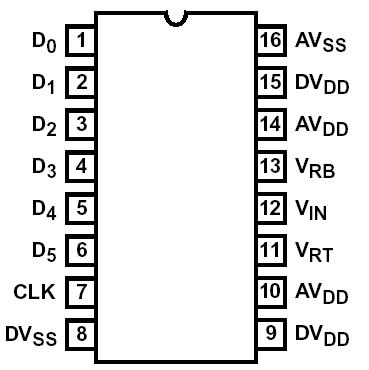

HI1172 Connection Diagram
HI1172
