Five Points

Part Number: HI1178

MFG: HARRIS

Package Cooled: N/A

D/C: 07+

Description: The HI1178 is a triple 8-bit, high-speed, CMOS D/A converter designed for video band use. It has three separate, 8-bit,...

HI1178 General Description

The HI1178 is a triple 8-bit, high-speed, CMOS D/A converter designed for video band use. It has three separate, 8-bit, pixel inputs, one each for red, green, and blue video data. A single 5.0V power supply and pixel clock input is all that is required to make the device operational. A bias voltage generator is internal. Each channel clock input can be controlled individually, or connected together as one. The HI1178 also has BLANK video control signal. Refer to the HI2304 for 3.3V operation.

HI1178 Maximum Ratings

Supply Voltage (V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Input Voltage (V_IN) . . . . . . . . . . . . . . . . . . . . . . . . . . . V_DD to V_SS
Output Current (I_OUT). . . . . . . . . . . . . . . . . . . . . . . . . V_DD to V_SS
Digital Input Voltage (C_LK) . . . . . . . . . . . . . . . . . .. . 0mA to 15mA

HI1178 Features

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . .Triple 8-Bit
• Maximum Conversion Speed . . . . . . . . . . . . . . . 40MHz
• RGB 3-Channel Input/Output
• Differential Linearity Error . . . . . . . . . . . . . . . +0.3 LSB
• Low Power Consumption . . . . . . . . . . . . . . . . . .240mW
(200W Load for 2VP-P Output)
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . . .+5V
• Low Glitch Noise
• Direct Replacement for Sony CXD1178

HI1178 Typical Application

• Digital TV
• Graphics Display
• High Resolution Color Graphics
• Video Reconstruction
• Instrumentation
• Image Processing
• I/Q Modulation

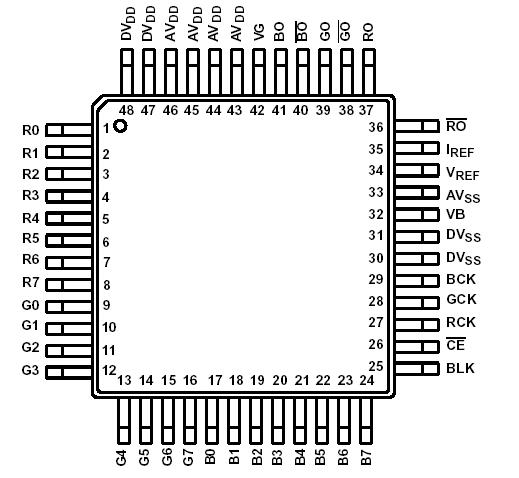

HI1178 Connection Diagram

HI1178 datasheet
