HMC347G8

Features: Isolation: 42 dB @ 2.5 GHz 30 dB @ 6.0 GHzInsertion Loss: 2.0 dB @ 6.0 GHzNon-Refl ective Design8 Lead Hermetic SMT PackageApplicationThe HMC347G8 is ideal for:• Telecom Infrastructure• Microwave Radio & VSAT• Military Radios, Radar & ECM• Test Instrumenta...

product image

HMC347G8 Picture
See larger image
SeekIC No. : 004363909 Detail

HMC347G8: Features: Isolation: 42 dB @ 2.5 GHz 30 dB @ 6.0 GHzInsertion Loss: 2.0 dB @ 6.0 GHzNon-Refl ective Design8 Lead Hermetic SMT PackageApplicationThe HMC347G8 is ideal for:• Telecom Infrastructu...

HMC347G8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC347G8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Isolation: 42 dB @ 2.5 GHz
               30 dB @ 6.0 GHz
Insertion Loss: 2.0 dB @ 6.0 GHz
Non-Refl ective Design
8 Lead Hermetic SMT Package


Application

The HMC347G8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
• Test Instrumentation

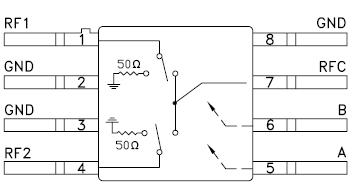

Pinout

Connection Diagram


Specifications

RF Input Power (Vctl = -5V) +27 dBm
Control Voltage Range (A & B) +0.5V to -7.5 Vdc
Channel Temperature 150
Thermal Resistance
(Insertion Loss Path)		 440 /W
Thermal Resistance
(Terminated Path)		 540 /W
Storage Temperature -65 to +150
Operating Temperature -55 to +85



Description

The HMC347G8 is a broadband high isolation non-refl ective GaAs MESFET SPDT switch in a 8 lead glass/metal (hermetic) surface mount package. Covering DC to 8.0 GHz, the HMC347G8 switch features >42 dB isolation up to 2 GHz and >25 dB isolation up to 8.0 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. This SPDT is a good replacement for the HMC132G7 SPDT.
