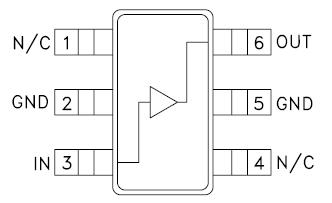

Features: Single Supply: Vdd = +2.75 to +5.5VLow Noise Figure: 1.5 dBHigh Output IP3: +37 dBmNo External Matching RequiredApplicationThe HMC374 / HMC374E is ideal for:• Cellular/PCS/3G• WCS, MMDS & ISM• Fixed Wireless & WLAN• Private Land Mobie RadioPinoutSpecificat...
HMC374: Features: Single Supply: Vdd = +2.75 to +5.5VLow Noise Figure: 1.5 dBHigh Output IP3: +37 dBmNo External Matching RequiredApplicationThe HMC374 / HMC374E is ideal for:• Cellular/PCS/3G• ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe HMC304MS8(E) is a passive high IP3 mixer in 8 lead plastic surface mount Mini Small...
Drain Bias Voltage (Vdd) | +5.0 Vdc |
RF Input Power (RFin)(Vdd = +5.0 Vdc) | +10 dBm |
Channel Temperature | 150 °C |
Continuous Pdiss (T = 85 °C) (derate 7.5 mW/°C above 85 °C) |
0.488 W |
Thermal Resistance (channel to ground paddle) |
133 °C/W |
Storage Temperature | -65 to +150 °C |
Operating Temperature | -40 to +85 °C |
The HMC374 & HMC374E are general purpose broad band Low Noise Amplifi ers (LNA) for use in the 0.3-3 GHz frequency range. The LNA provides 15 dB of gain and a 1.5 dB noise fi gure from a single positive supply of +2.75 to +5.5V. The low noise fi gure coupled with a high P1dB (22 dBm) and high OIP3 (37 dBm) make HMC374 & HMC374E ideal for cellular applications. The compact LNA design utilizes on-chip matching for repeatable gain and noise fi gure performance. To minimize board area the design is offered in a low cost SOT26 package that occupies only 0.118" x 0.118".
