Part Number: HY62KF16403E
Description: The HY62KF16403E is a high speed, super low power and 4Mbit full CMOS SRAM organized as 256K words by ...
- Table of contents:
HY62KF16403E
-
Suppliers
DataSheet
General Description
HY62KF16403E General Description
The HY62KF16403E is a high speed, super low power and 4Mbit full CMOS SRAM organized as 256K words by 16bits. The HY62KF16403E uses high performance full CMOS process technology and is designed for high speed and low power circuit technology. It is particularly well-suited for the high density low power system application. This device has a data retention mode that guarantees data to remain valid at a minimum power supply voltage of 1.2V.
HY62KF16403E Maximum Ratings
| Symbol | Parameter | Rating | Unit | Remark |
| VIN, VOUT | Input/Output Voltage | -0.3 to VCC+0.3V | V | |
| Vcc | Power Supply | -0.3 to 4.6 | V | |
| TA | Operating Temperature | -40 to 85 | °C | HY62KF16403E-I |
| TSTG | Storage Temperature | -55 to 150 | °C | |
| PD | Power Dissipation | 1.0 | W | |
| TSOLDER | Ball Soldering Temperature & Time | 260 · 10 | °C·sec |
HY62KF16403E Features
Fully static operation and Tri-state output
TTL compatible inputs and outputs
Battery backup -. 1.2V(min) data retention
Standard pin configuration -. 44pin 400mil TSOP-II (Forward)
TTL compatible inputs and outputs
Battery backup -. 1.2V(min) data retention
Standard pin configuration -. 44pin 400mil TSOP-II (Forward)

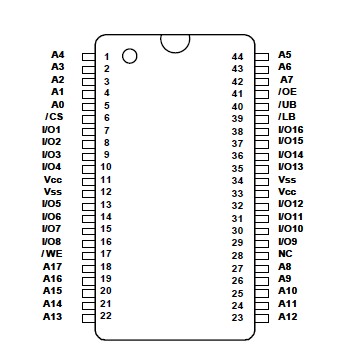

HY62KF16403E Connection Diagram
HY62KF16403E-SD55I
