Part Number: IDT54FCT16373ET
Description: The FCT16373T/AT/CT/ET and FCT162373T/AT/CT/ET 16-bit transparent D-type latches are built using advan...
- Table of contents:
IDT54FCT16373ET
-
Suppliers
DataSheet
General Description
IDT54FCT16373ET General Description
The FCT16373T/AT/CT/ET and FCT162373T/AT/CT/ET 16-bit transparent D-type latches are built using advanced dual metal CMOS technology. These high-speed, low-power latches are ideal for temporary storage of data. They can be used for implementing memory address latches, I/O ports, and bus drivers. The Output Enable and Latch Enable controls are organized to operate each device as two 8-bit latches, or one 16-bit latch. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The FCT16373T/AT/CT/ET are ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.
The FCT162373T/AT/CT/ET have balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall times reducing the need for external series terminating resistors. The FCT162373T/AT/CT/ET are plug-in replacements for the FCT16373T/AT/CT/ET and ABT16373 for on-board interface applications.
IDT54FCT16373ET Maximum Ratings
.
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXXT Output and I/O terminals.
3. Output and I/O terminals for FCT162XXXT.
| Symbol |
Description |
Max. |
Unit |
| VTERM(2) | Terminal Voltage with Respect to GND |
-0.5 to +7.0 |
V |
| VTERM(3) | Terminal Voltage with Respect to GND |
0.5 to VCC +0.5 |
V |
| TSTG | Storage Temperature |
65 to +150 |
|
| IOUT | DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXXT Output and I/O terminals.
3. Output and I/O terminals for FCT162XXXT.
IDT54FCT16373ET Features
• Common features:
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch
TSSOP,15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
VCC = 5V ±10%
• Features for FCT16373T/AT/CT/ET:
High drive outputs (-32mA IOH, 64mA IOL)
Power off disable outputs permit "live insertion"
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Features for FCT162373T/AT/CT/ET:
Balanced Output Drivers: ±24mA (commercial),±16mA (military)
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015;> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch
TSSOP,15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
VCC = 5V ±10%
• Features for FCT16373T/AT/CT/ET:
High drive outputs (-32mA IOH, 64mA IOL)
Power off disable outputs permit "live insertion"
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Features for FCT162373T/AT/CT/ET:
Balanced Output Drivers: ±24mA (commercial),±16mA (military)
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C

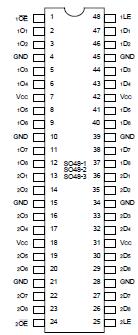

IDT54FCT16373ET Connection Diagram
IDT54FCT16373ET
PDF/DataSheet Download
- Datasheet: IDT54FCT16373ET
- File Size: 124830 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
