Purchase IDT54FCT521CT, In-stock IDT54FCT521CT From SeekIC.
Part Number: IDT54FCT521CT
Description: The IDT54/74FCT521T/AT/BT/CT are 8-bit identity comparators built using an advanced dual metal CMOS&nb...
- Table of contents:
IDT54FCT521CT
-
Suppliers
DataSheet
General Description
IDT54FCT521CT General Description
The IDT54/74FCT521T/AT/BT/CT are 8-bit identity comparators built using an advanced dual metal CMOS technology.These devices compare two words of up to eight bits each and provide a LOW output when the two words match bit for bit. The expansion input IA = B also serves as an active LOW enable input.
IDT54FCT521CT Maximum Ratings
| Symbol | Rating |
Commercial |
Military |
Unit |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to +7.0 |
0.5 to +7.0 |
V |
| VTERM | Terminal Voltage with Respect to GND |
-0.5 to VCC +0.5 |
0.5 to VCC +0.5 |
V |
| TA | Operating Temperature |
0 to +70 |
55 to +125 |
°C |
| TBIAS | Temperature Under Bias |
55 to +125 |
65 to +135 |
°C |
| TSTG |
Storage Temperature |
55 to +125 |
65 to +150 |
°C |
| PT | Power Dissipation |
0.5 |
0.5 |
W |
| IOUT |
DC Output Current |
60 to +120 |
60 to +120 |
mA |
IDT54FCT521CT Features
• Std., A, B and C speed grades
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
• High drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
• High drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages

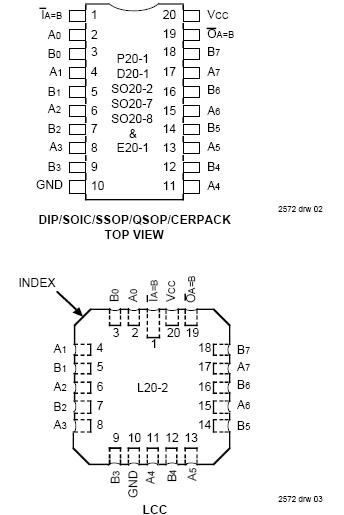

IDT54FCT521CT Connection Diagram
