Purchase ILX103A, In-stock ILX103A From SeekIC.
MFG:SONY D/C:05+
Part Number: ILX103A
MFG: SONY
D/C: 05+
Description: The ILX103A is a rectangular reduction type CCD linear image sensor designed for bar code POS hand sca...
- Table of contents:
ILX103A
-
Suppliers
DataSheet
General Description
ILX103A General Description
The ILX103A is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use. A built-in timing generator and clock-drivers ensure single 5V power supply for easy use.
ILX103A Maximum Ratings
Supply voltage.................VDD 6 V
Operating temperature........ 10 to +60 °C
Storage temperature .........30 to +80 °C
Operating temperature........ 10 to +60 °C
Storage temperature .........30 to +80 °C
ILX103A Features
• Number of effective pixels: 3000 pixels
• Pixel size: 7µm×200µm (7µm pitch)
• S/H output
• Built-in timing generator and clock-drivers
• Output amplifier gain switching function (2-level: switching gain ratio 1:4)
• SIP small package
• Clock frequency: 500kHz (Typ.), 100kHz (Min.), 1MHz (Max.)
• Pixel size: 7µm×200µm (7µm pitch)
• S/H output
• Built-in timing generator and clock-drivers
• Output amplifier gain switching function (2-level: switching gain ratio 1:4)
• SIP small package
• Clock frequency: 500kHz (Typ.), 100kHz (Min.), 1MHz (Max.)

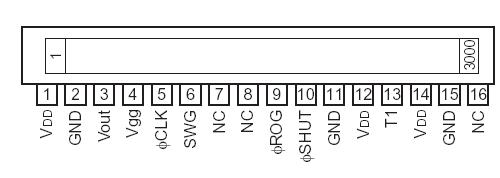

ILX103A Connection Diagram
ILX103A
PDF/DataSheet Download
- Datasheet: ILX103A
- File Size: 102621 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
