ILX128MA

Features: • Number of effective pixels:32100 pixels (5350 pixels*6)• Pixel size: 6µm *8µm (8µm pitch)• Distance between line: 48µm (6 lines: Rsub Rmain, Rmain Gsub, Gsub Gmain, Gmain Bsub, Bsub Bmain)• Single-sided readout• Shutter functio...

product image

ILX128MA Picture
See larger image
SeekIC No. : 004374279 Detail

ILX128MA: Features: • Number of effective pixels:32100 pixels (5350 pixels*6)• Pixel size: 6µm *8µm (8µm pitch)• Distance between line: 48µm (6 lines: Rsub Rmain, Rm...

ILX128MA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX128MA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels:
32100 pixels (5350 pixels*6)
• Pixel size: 6µm *8µm (8µm pitch)
• Distance between line: 48µm (6 lines: Rsub Rmain, Rmain Gsub, Gsub Gmain, Gmain Bsub, Bsub Bmain)
• Single-sided readout
• Shutter function
• Ultra-high sensitivity/Ultra-low lag
• Supply voltage: Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output: 3 (R, G, B)
• Package: 24-pin Plastic-DIP


Pinout

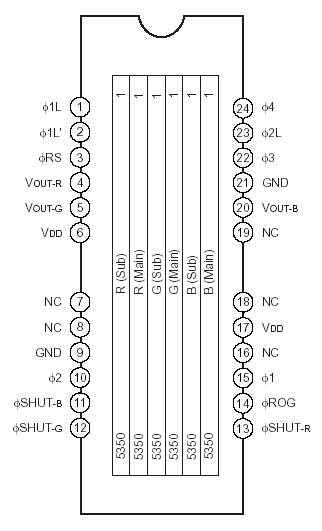

Connection Diagram


Specifications

Supply voltage VDD . . . . . . . . . . . . . . .15 V
Input clock voltage . . . . . . . . . . . . . . . . 7 V
Operating temperature  . . .10 to +55 °C
Storage temperature  . . . . 30 to +80 °C


Description

The ILX128MA is a reduction type CCD linear sensor developed for color image scanner, and has shutter function per each color. This sensor reads A3-size documents at a density of pseudo 800DPI, and reads A4-size at a density of pseudo 1200DPI.
