Product Details

Description



Features:

• Number of effective pixels: 64200 pixels (10700 pixels × 6)
• Pixel size: 2.4µm × 4µm (4µm pitch)
• Distance between line: 2 lines between the same color (8µm) 16 lines between different colors (64µm)
• On-chip microlens Cylindrical lens (width 6µm)
• Single-sided readout
• Supply voltage: Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output: 3 (R, G, B)
• Package: 24-pin Plastic-DIP

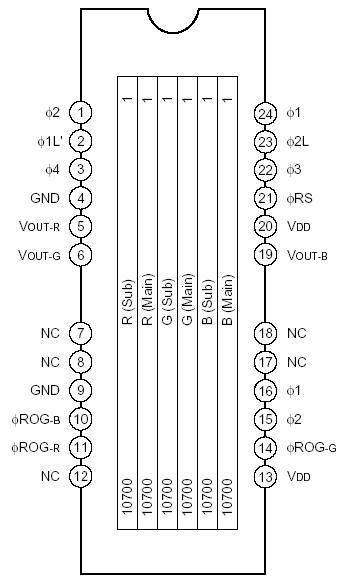

Pinout

Connection Diagram


Specifications

Supply voltage VDD . . . . . . . .. . . . . . . . .15 V
Input clock voltage  . . . . . . . . . . . . . . . .  7 V
Operating temperature  . . . 10 to +60 °C
Storage temperature  . . . . .30 to +80 °C


Description

The ILX137K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads A4-size documents at a density of pseudo 2400DPI.
