Part Number: ILX521AA









Description: The ILX521AA is a rectangular reduction type CCD linear image sensor designed for image scanner sensor. A built-in timi...


Urgent Purchase

ILX521AA General Description


The ILX521AA is a rectangular reduction type CCD linear image sensor designed for image scanner sensor. A built-in timing generator and clock driver ensure single 5V power supply for easy use.

ILX521AA Maximum Ratings

Supply voltage............... VDD 6 V
Operating temperature ......10 to +60 °C
Storage temperature .......30 to +80 °C

ILX521AA Features

• Number of effective pixels: 256 pixels
• Pixel size: 14µm ×14µm (14µm pitch)
• Built-in timing generator and clock driver
• Built-in S/H circuit
• Maximum data rate: 2MHz
• Single 5V power supply
• Clear mold package (20-pin SOP)

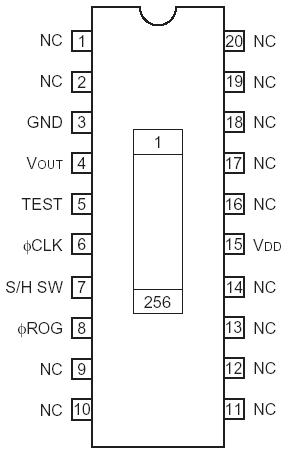

ILX521AA Connection Diagram

ILX521AA  Connection Diagram
