Part Number: ILX524K



MFG: SONY

Package Cooled: CDIP

D/C: 05+

Description: The ILX524K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads legal-size docum...


Urgent Purchase

ILX524K General Description


The ILX524K is a reduction type CCD linear sensor developed for color image scanner. This sensor reads legal-size documents at a density of 300 DPI.

ILX524K Maximum Ratings

Supply voltage ..............VDD 15 V
Operating temperature ......10 to +55 °C
Storage temperature .......30 to +80 °C

ILX524K Features

• Number of effective pixels:
8100 pixels (2700 pixels ´ 3)
• Pixel size: 8µm ´ 8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Ultra low lag / High sensitivity
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 22 pin cer-DIP (400 mil)

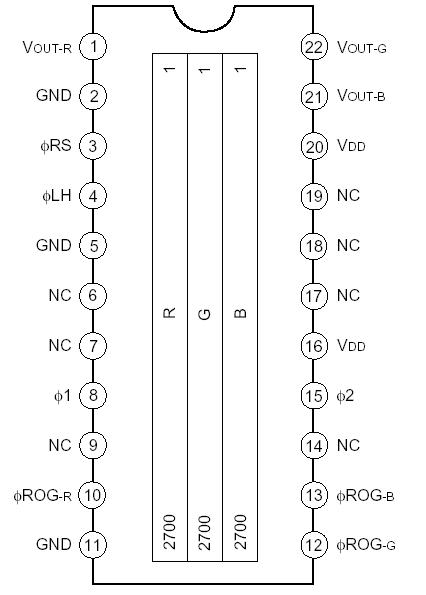

ILX524K Connection Diagram

ILX524K Connection Diagram

ILX524K datasheet

ILX524K
PDF/DataSheet Download
