Part Number: ILX533KB



MFG: SONY

Package Cooled: DIP

D/C: 05+

Description: The ILX533KB is a reduction type CCD linear sensor developed for color image scanner. The distance between lines is onl...


Urgent Purchase

ILX533KB General Description


The ILX533KB is a reduction type CCD linear sensor developed for color image scanner. The distance between lines is only 4 line (32µm). This sensor reads A4-size documents at a density of 300DPI.

ILX533KB Maximum Ratings

Supply voltage ................VDD 15 V
Operating temperature ........10 to +55 °C
Storage temperature .........30 to +80 °C

ILX533KB Features

• Number of effective pixels: 8100 pixels (2700 pixels×3)
• Pixel size: 8µm ×8µm (8µm pitch)
• Distance between line: 32µm (4 Lines)
• Number of output 3 (R, G, B)
• Single-sided readout
• Clamp circuit are on-chip
• Ultra high sensitivity/Ultra low lag
• Single 12V power supply
• Maximum data rate: 9MHz (3MHz×3)
• Input Clock Pulse: CMOS 5V drive
• Package: 22 pin Plastic-DIP (400 mil)

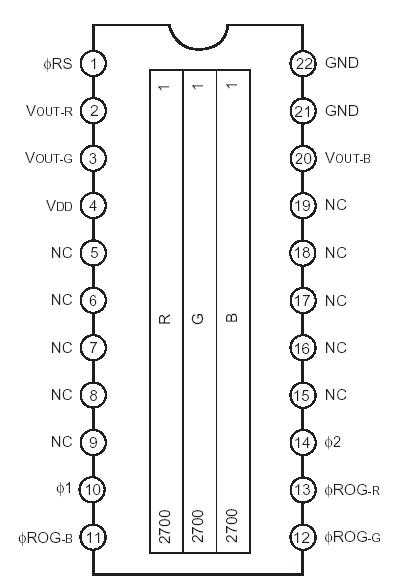

ILX533KB Connection Diagram

ILX533KB Connection Diagram

ILX533KB datasheet

ILX533KB
PDF/DataSheet Download
