INA110

Features: `LOW BIAS CURRENT: 50pA max`FAST SETTLING: 4s to 0.01%`HIGH CMR: 106dB min; 90dB at 10kHz`INTERNAL GAINS: 1, 10, 100, 200, 500`VERY LOW GAIN DRIFT: 10 to 50ppm/°C`LOW OFFSET DRIFT: 2V/°C`LOW COST`PINOUT SIMILAR TO AD524 AND AD624Application·MULTIPLEXED INPUT DATA ACQUISITION SYSTEM·FAST ...

product image

INA110 Picture
See larger image
SeekIC No. : 004375349 Detail

INA110: Features: `LOW BIAS CURRENT: 50pA max`FAST SETTLING: 4s to 0.01%`HIGH CMR: 106dB min; 90dB at 10kHz`INTERNAL GAINS: 1, 10, 100, 200, 500`VERY LOW GAIN DRIFT: 10 to 50ppm/°C`LOW OFFSET DRIFT: 2V/°C`L...

INA110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`LOW BIAS CURRENT: 50pA max
`FAST SETTLING: 4s to 0.01%
`HIGH CMR: 106dB min; 90dB at 10kHz
`INTERNAL GAINS: 1, 10, 100, 200, 500
`VERY LOW GAIN DRIFT: 10 to 50ppm/°C
`LOW OFFSET DRIFT: 2V/°C
`LOW COST
`PINOUT SIMILAR TO AD524 AND AD624


Application

·MULTIPLEXED INPUT DATA ACQUISITION SYSTEM
·FAST DIFFERENTIAL PULSE AMPLIFIER
·HIGH SPEED GAIN BLOCK
·AMPLIFICATION OF HIGH IMPEDANCE SOURCES

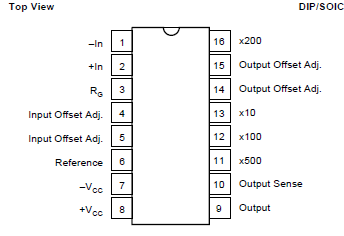

Pinout

Connection Diagram


Specifications

Supply Voltage ..................................................................................±18V
Input Voltage Range ..........................................................................±VCC
Operating Temperature Range: G ................................. 55 to +125
                                                  P, U ............................... 25 to +85
Storage Temperature Range: G .................................... 65 to +150
                                               P, U .................................. 40 to +85
Lead Temperature (soldering, 10s): G, P........................................+300
                                (soldering, 3s): U ...........................................+260
Output Short Circuit Duration ............................... Continuous to Common


Description

The INA110 is a versatile monolithic FET-input instrumentation amplifier. Its current-feedback circuit topology and laser trimmed input stage provide excellent dynamic performance and accuracy. The INA110 settles in 4ms to 0.01%, making it ideal for high speed or multiplexed-input data acquisition systems.

Internal gain-set resistors are provided for gains of 1, 10, 100, 200, and 500V/V. Inputs are protected for differential and common-mode voltages up to ±VCC.

Its very high input impedance and low input bias current make the INA110 ideal for applications requiring input filters or input protection circuitry.

The INA110 is available in 16-pin plastic and ceramic DIPs, and in the SOL-16 surface-mount package.

Military, industrial and commercial temperature range grades are available.
