IS41C85125

Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Single power supply:-- 5V ± 10% (IS41C85125)-- 3.3V ± 10% (IS41LV8512...

product image

IS41C85125 Picture
See larger image
SeekIC No. : 004379001 Detail

IS41C85125: Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden•...

IS41C85125 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS41C85125
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access and cycle time
• TTL compatible inputs and outputs
• Refresh Interval: 1024 cycles/16 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:
-- 5V ± 10% (IS41C85125)
-- 3.3V ± 10% (IS41LV85125)
• Industrial temperature available

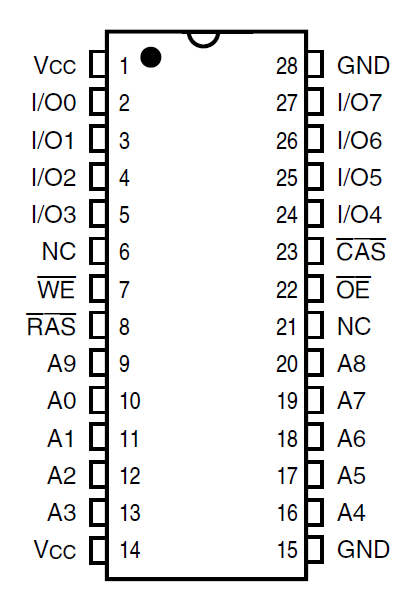

Pinout

Connection Diagram


Specifications

Symbol
Parameters
Rating
Unit
VT
 Voltage on Any Pin Relative to GND    5V
                                                           3.3V
1.0 to +7.0
0.5 t0 +4.6
V
VCC
 Supply Voltage                                    5V
                                                           3.3V
1.0 to +7.0
0.5 t0 +4.6
V
IOUT
 Output Current
50
mA
PD
 Power Dissipation
1
W
TA
 Operation Temperature                     Com.
                                                          Ind.
0 to +70
40 to +85

TSTG
 Storage Temperature
55 to +125
Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ISSI IS41C85125 and IS41LV85125 are 512,288 x 8-bit high-performance CMOS Dynamic Random Access Memories. Fast Page Mode allows 1024 random accesses within a single row with access cycle time as short as 12 ns per 8-bit word.

These features make the IS41C85125 and the IS41LV85125 ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IS41C85125 and IS41LV85125 are available in a 28-pin, 400-mil SOJ package
