Purchase K4S641632F, In-stock K4S641632F From SeekIC.
MFG:SAM D/C:247
Part Number: K4S641632F
MFG: SAM
D/C: 247
Description: The K4S641632F is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 wo...
- Table of contents:
K4S641632F
-
Suppliers
DataSheet
General Description
K4S641632F General Description
The K4S641632F is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits, fabricated with SAMSUNG¢s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
K4S641632F Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Voltage on any pin relative to Vss |
VIN, VOUT |
-1.0 ~ 4.6 |
V |
|
Voltage on VDD supply relative to Vss |
VDD, VDDQ |
-1.0 ~ 4.6 |
V |
|
Storage temperature |
TSTG |
-55 ~ +150 |
°C |
|
Power dissipation |
PD |
1 |
W |
|
Short circuit current |
IOS |
50 |
mA |
K4S641632F Features
• JEDEC standard 3.3V power supply
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock
• Burst read single-bit write operation
• DQM for masking
• Auto & self refresh
• 64ms refresh period (4K cycle)
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock
• Burst read single-bit write operation
• DQM for masking
• Auto & self refresh
• 64ms refresh period (4K cycle)

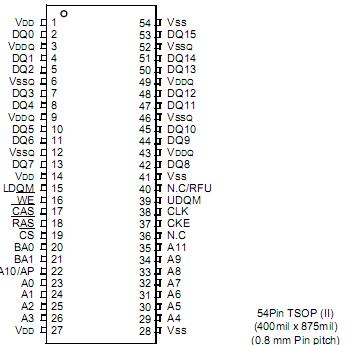

K4S641632F Connection Diagram
K4S641632F
PDF/DataSheet Download
- Datasheet: K4S641632F
- File Size: 100968 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
