KS86P4004

Features: CPU• SAM87Ri CPU coreMemory• 4-Kbyte internal program memory (ROM)• 208-byte general purpose register area (RAM)Instruction Set• 41 instructions• IDLE and STOP instructions added for power-down modes.Instruction Execution Time• 600 ns at 10 MHz fOSC (m...

product image

KS86P4004 Picture
See larger image
SeekIC No. : 004387570 Detail

KS86P4004: Features: CPU• SAM87Ri CPU coreMemory• 4-Kbyte internal program memory (ROM)• 208-byte general purpose register area (RAM)Instruction Set• 41 instructions• IDLE and STO...

KS86P4004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS86P4004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87Ri CPU core
Memory
• 4-Kbyte internal program memory (ROM)
• 208-byte general purpose register area (RAM)
Instruction Set
• 41 instructions
• IDLE and STOP instructions added for power-down modes.
Instruction Execution Time
• 600 ns at 10 MHz fOSC (minimum)
Interrupts
• 6 interrupt sources with one vector and one level
interrupt structure
Oscillation Frequency
• 1 MHz to 10 MHz external crystal oscillator
• Maximum 10 MHz CPU clock
• 4 MHz RC oscillator
General I/O
• Four I/O ports (22 pins for KS86C4004, 16 pins for KS86C4104)
• Bit programmable ports
A/D Converter
• Eight analog input pins
• 8-bit conversion resolution (KS86C4004)
• 10-bit conversion resolution (KS86C4104)
Timer/Counter
• One 8-bit basic timer for watchdog function
• One 8-bit timer/counter with three operating
modes (10-bit PWM 1ch)
• One 8-bit timer/counter for the zero-crossing
detection circuit
Zero-Crossing Detection Circuit
• Zero-crossing detection circuit that generates a digital signal in synchronism with an AC signal
input
Buzzer Frequency Range
• 200 Hz to 20 kHz signal can be generated
Operating Temperature Range
• 40 to + 85
Operating Voltage Range
• 2.7 V to 5.5 V
OTP Interface Protocol Spec
• Serial OTP
Package Types
• 30-pin SDIP, 32-pin SOP for KS86C4004/P4004
• 24-pin SDIP, 24-pin SOP for KS86C4104/P4104


Pinout

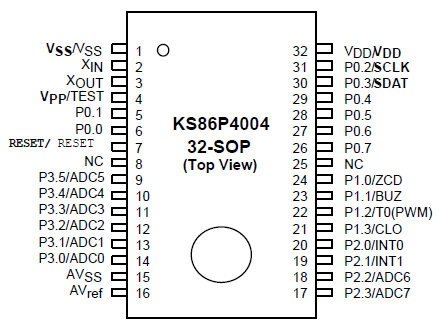

Connection Diagram

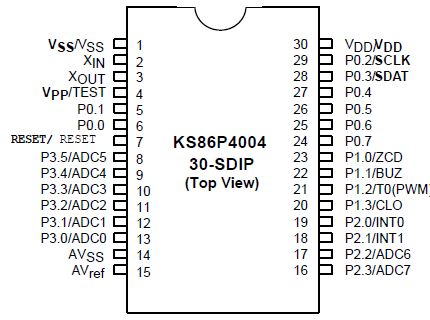

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
All ports
0.3 to VDD +0.3
V
Output voltage
VO
All output ports
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
18
mA
All I/O pins active
60
Output current Low
IOL
One I/O pin active
+30
mA
Total pin current for ports 1,2,3
+100
Total pin current for ports 0
+ 200
Operating temperature
TA
40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS86P4004 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS86C4004 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by serial data format.

The KS86P4004/P4104 is fully compatible with the KS86C4004/C4104 , both in function and in pin configuration.

Because of its simple programming requirements, the KS86P4004/P4104 is ideal for use as an evaluation chip for the KS86C4004.
