Purchase LC89210, In-stock LC89210 From SeekIC.
Package Cooled:QFP
Part Number: LC89210
Package Cooled: QFP
Description: The LC89210 is a highly integrated modem engine that can be used in products that support transmission rates up to the ...
- Table of contents:
LC89210
-
Suppliers
DataSheet
General Description
LC89210 General Description
The LC89210 is a highly integrated modem engine that can be used in products that support transmission rates up to the 14,400 bps rate used in contemporary group III fax equipment. The LC89210 is compatible with V.21, V.23 and Bell 103 full-duplex modems.
LC89210 Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| DC supply voltage | VDD | 0.3 to +7.0 | V | |
| Digital or analog input voltage | VI, VIN | 0.3 to (VDD + 0.3) | V | |
| Digital or analog input current | II, IIN | ±1 | mA | |
| Digital output current | IO | ±20 | mA | |
| Analog output current | IOUT | ±10 | mA | |
| Allowable power dissipation | Pd max | 1000 | mW | |
| Operating temperature | Topr | 0 to +70 | ||
| Storage temperature (plastic) | Tstg | 40 to +125 |
LC89210 Features
• Supports the ITU-T V.17, V.29, and V.27ter fax standards
• ITU-T V.23, V.21, and Bell 103
• V.17, V.29 (T104), and V.27ter short training
• V.33 half duplex
• 1800-Hz or 1700-Hz carrier
• The LC89210 is a complete data pump on a single chip.
• 5 V single-voltage power supply
- Operating power dissipation: 375 mW (typical)
- Low power mode: 5 mW (typical)
• Expanded operating modes
- Full implementation of V.17, V.33, V.29, and V.27ter handshaking
- Autodial and autoanswer functions
- Programmable tone detection and FSK V.21 flag pattern detection during high-speed reception
- Programmable call progresss and call waiting tone detection, including DTMF
- Support for programmable CLASSTM detection
- Wide dynamic range (better than 48 dB)
- A-law voice PCM mode
• Multiple interfaces
- Parallel 64*8-bit dual-port RAM
- Synchronous/HDLC parallel data processing
- Support for HDLC framing
- V.24 interface
- Can monitor all operating states in real time.
- Includes all diagnostic functions.
- Dual 8-bit D/A converter for eye pattern display
• ITU-T V.23, V.21, and Bell 103
• V.17, V.29 (T104), and V.27ter short training
• V.33 half duplex
• 1800-Hz or 1700-Hz carrier
• The LC89210 is a complete data pump on a single chip.
• 5 V single-voltage power supply
- Operating power dissipation: 375 mW (typical)
- Low power mode: 5 mW (typical)
• Expanded operating modes
- Full implementation of V.17, V.33, V.29, and V.27ter handshaking
- Autodial and autoanswer functions
- Programmable tone detection and FSK V.21 flag pattern detection during high-speed reception
- Programmable call progresss and call waiting tone detection, including DTMF
- Support for programmable CLASSTM detection
- Wide dynamic range (better than 48 dB)
- A-law voice PCM mode
• Multiple interfaces
- Parallel 64*8-bit dual-port RAM
- Synchronous/HDLC parallel data processing
- Support for HDLC framing
- V.24 interface
- Can monitor all operating states in real time.
- Includes all diagnostic functions.
- Dual 8-bit D/A converter for eye pattern display

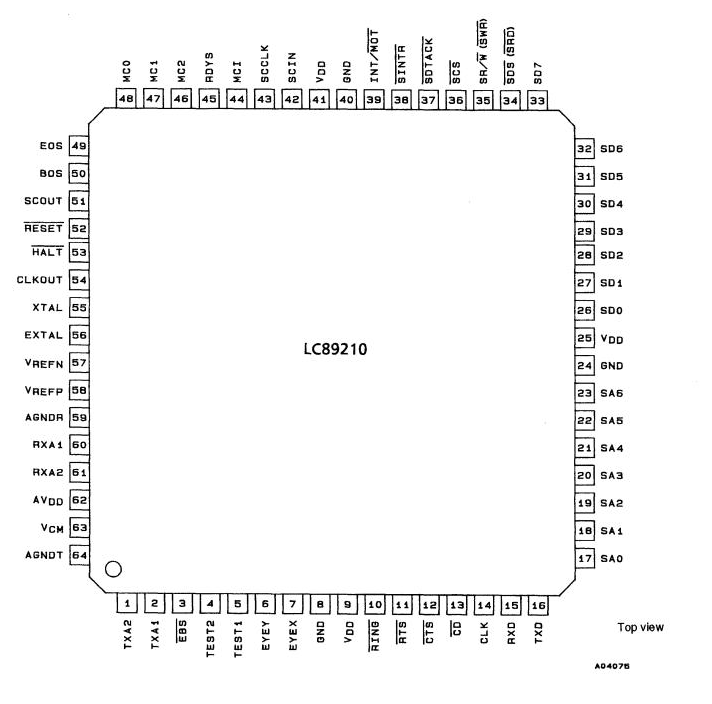

LC89210 Connection Diagram
LC89210
PDF/DataSheet Download
- Datasheet: LC89210
- File Size: 204254 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
