Part Number: M29W400BT

MFG: ST

Package Cooled: TSOP

Description: The M29W400B is a 4 Mbit (512Kb x8 or 256Kbx16) non-volatile memory that can be read, erased and reprogrammed. These op...

M29W400BT General Description

The M29W400B is a 4 Mbit (512Kb x8 or 256Kbx16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V)supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29W400B is fully backward compatible with the M29W400.

The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. Each block can be protected independently to prevent accidental Program or Erase commands from modifying the memory. Program and Erase commands are written to the Command Interface of the memory. An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory is consistent with JEDEC standards.

M29W400BT Maximum Ratings

Symbol	Parameter	Value	Unit
T_A	Ambient Operating Temperature (Temperature Range Option 1)	0 to 70	°C
T_A	Ambient Operating Temperature (Temperature Range Option 6)	40 to 85	°C
T_BIAS	Temperature Under Bias	50 to 125	°C
T_STG	Storage Temperature	65 to 150	°C
V_IO ⁽²⁾	Input or Output Voltage	0.6 to 4	V
V_CC	Supply Voltage	0.6 to 4	V
V_ID	Identification Voltage	0.6 to 13.5	V

M29W400BT Connection Diagram

M29W400BT datasheet

M29W400BT
PDF/DataSheet Download

Datasheet: M29W400BT
File Size: 135700 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Click here to Download

·M2901V
ORDERING INFORMATION
149016 KB
·M2907A
ETC [ETC]
Mini size of Discrete semiconductor elements
512569 KB
·M293
STMICROELECTRONICS [STMicroelectronics]
EPM 32 ELECTRONIC PROGRAM MEMORY FOR 32 STATIONS
2159674 KB
·M293B1
STMICROELECTRONICS [STMicroelectronics]
EPM 32 ELECTRONIC PROGRAM MEMORY FOR 32 STATIONS
2159674 KB
·M295V002B-120K1TR
STMICROELECTRONICS [STMicroelectronics]
2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
200998 KB
·M295V002B-120K6TR
STMICROELECTRONICS [STMicroelectronics]
2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
200998 KB
·M295V002B-120N1TR
STMICROELECTRONICS [STMicroelectronics]
2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
200998 KB
·M295V002B-120N6TR
STMICROELECTRONICS [STMicroelectronics]
2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
200998 KB

Related Part Number

M29W400BT Relative Products

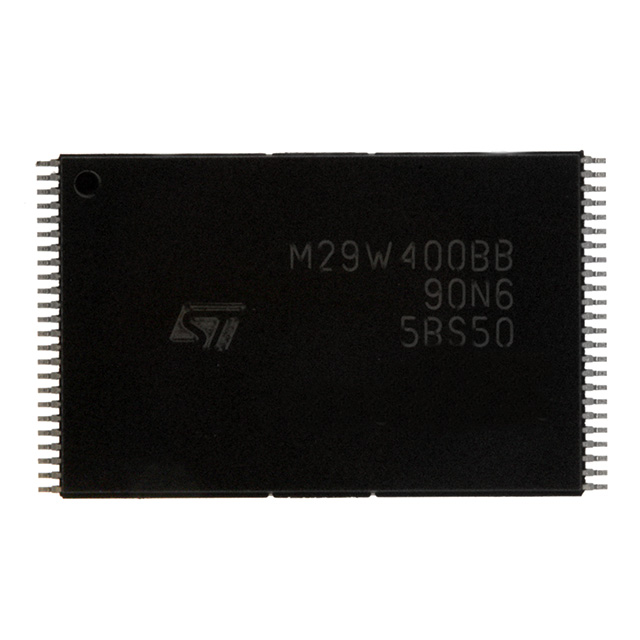

M29W400BB90N6
