Part Number: M54646AP



MFG: MIT

Package Cooled: DIP28



Description: The M54646AP is a semiconductor IC to drive bipolar stepper motors by controlling winding current with reference to a d...


Urgent Purchase

M54646AP General Description


The M54646AP is a semiconductor IC to drive bipolar stepper motors by controlling winding current with reference to a designated current level.

M54646AP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Supply voltage


-0.3 7
V
VMM
 Output supply voltage


-0.3 45
V
VL
 Logic input voltage


-0.3 6
V
VC
 Analog input voltage


-0.3 VCC
V
VR
 Comparative input voltage


-0.3 15
V
IL
 Logic input current


-10
mA
IC
 Analog input current


-10
mA
IO
 Output current
±1000
mA
Pd
 Power dissipation

Measured with IC mounted on board
1.92
W
Topr
 Operating temperature


-20 85
°C
Tstg
 Storage temperature


-55 125
°C

M54646AP Features

` Wide driver voltage range (10 40V)
` Wide output current control range (20 800mA)
` Bipolar and constant current control
`Built-in flywheel diode
`Built-in thermal protection circuit

M54646AP Typical Application

Office automation equipment such as printers, FDDs, HDDs and facsimiles

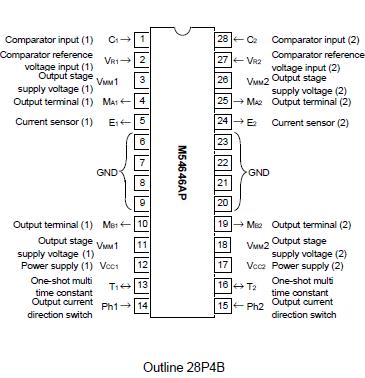

M54646AP Connection Diagram

M54646AP Connection Diagram

M54646AP datasheet

M54646AP
PDF/DataSheet Download

  • Datasheet: M54646AP
  • File Size: 124917 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
