Part Number: M54670P



MFG: MIT

Package Cooled: DIP



Description: The M54670P is a semiconductor IC to drive a bipolar stepper motor directly by controlling the coil cu...


Urgent Purchase

M54670P General Description


The M54670P is a semiconductor IC to drive a bipolar stepper motor directly by controlling the coil current with the constant current method.

M54670P Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
VCC
Supply Voltage

-0.3 7
V
VMM
 Output supply voltage
-0.3 40
V
VI
Logic circuit Input Voltage

-0.3 6
V
VC
Comparator input voltage


VCC
V
VR
 Reference input voltage
7
V
IO
Output Current

120
A
PD
Allowable power dissipation
 Mounted on a board
1.92
w
Topr
Operating temperature

-20 75
Tstg
Storage Temperature

-55 125

M54670P Features

Wide operating voltage range (10 35V)
Wide output current control range (20 800mA)
Bipolar and constant current drive
Built in flywheel
Current level can be changed by steps or continuously.
Built in a thermal shutdown circuit

M54670P Typical Application

Office automation equipment such as printer, FDD, HDD, and FAX

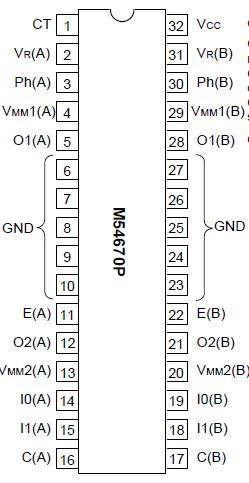

M54670P Connection Diagram
