M5M29KE131BVP

Features: ·Access time Random 70ns (Max.)·Page 25ns(Max.)·Supply voltage VCC= 3.0 ~ 3.6V·Ambient temperature Ta=-40 ~ 85 °C·Package 48pin TSOP(Type-I), Lead pitch 0.5mm·Outer-lead finishing : Sn-CuApplication·Digital Cellar Phone, Telecommunication,·PDA, Car Navigation System, Video Game MachinePi...

product image

M5M29KE131BVP Picture
See larger image
SeekIC No. : 004406180 Detail

M5M29KE131BVP: Features: ·Access time Random 70ns (Max.)·Page 25ns(Max.)·Supply voltage VCC= 3.0 ~ 3.6V·Ambient temperature Ta=-40 ~ 85 °C·Package 48pin TSOP(Type-I), Lead pitch 0.5mm·Outer-lead finishing : Sn-CuA...

M5M29KE131BVP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M29KE131BVP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Access time Random 70ns (Max.)
·Page 25ns(Max.)
·Supply voltage VCC= 3.0 ~ 3.6V
·Ambient temperature Ta=-40 ~ 85 °C
·Package 48pin TSOP(Type-I), Lead pitch 0.5mm
·Outer-lead finishing : Sn-Cu


Application

·Digital Cellar Phone, Telecommunication,
·PDA, Car Navigation System, Video Game Machine

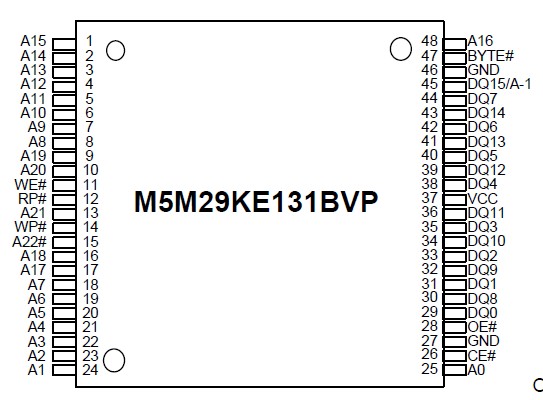

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Min.
Max.
Units
VCC
VCC Voltage
With Respect to GND
-0.2
4.6
V
VI1
All Input or Output Voltage 1)
-0.6
4.6
V
Ta
Ambient Temperature
-40
85
°C
Tbs
Temperature under Bias
-50
95
°C
Tstg
Storage Temperature
-65
125
°C
Iout
Output Short Circuit Current
100
mA

1)Minimum DC voltage is 0.6V on input / output pins. During transitions, the level may undershoot to 2.0V for periods <20ns. Maximum DC voltage on input / output pins is VCC+0.5V which, during transitions, may overshoot to VCC+1.5V for periods <20ns.




Description

The M5M29KE131BVP is a Stacked micro Multi Chip Package that contents 2 Dies of 64M-bit Flash memory in a 48-pin TSOP(I) for lead free use.

128M-bit Flash memory is a 16,777,216 bytes / 8,388,608 words, single power supply and high performance nonvolatile memory fabricated by CMOS technology for the peripheral circuit and DINOR IV (Divided bit-line NOR IV) architecture for the memory cell. All memory blocks are locked and can not be programmed or erased, when WP# is Low. Using Software Lock Release function, program or erase operation can be executed.

The M5M29KE131BVP is suitable for a high performance cellular phone and a mobile PC that are required to be small mounting area, weight and small power dissipation.
