Product Details

Description

Features:

•Selection of delay time in a range between 0.5msec and 32.0msec in 64 increments of 0.5msec
•Selection of delay time is controlled by serial data
•Built-in A-D, D-A converters,input/output low-pass filter,and 16K bit memory
•High sound quality is assured by simple system construction,due to A-D, D-A converters with ADM
(Adaptive Delta Modulation) system
Output noise voltage : -95dBV (typ)
Total harmonic distortion : 0.2% (typ)

Pinout

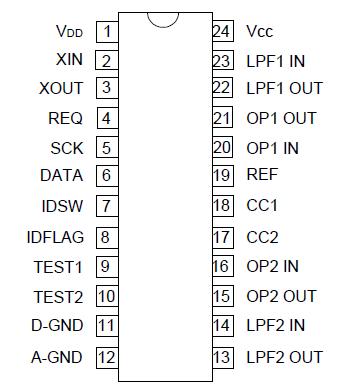

Connection Diagram

Specifications

Symbol	parameter		Ratings	Unit
Vcc	Supply Voltage		6.5	V
Icc	Circuit current		100	mA
Pd	Power dissipation	M65830BP	1	W
Pd	Power dissipation	M65830BFP	0.8	W
Topr	Operating temperature		-20to75
Tstg	Storage Temperatare		-40to125

Description

The M65830B is a CMOS IC developed to produce surround effects on TV sets and video disc players.Among the series,it has the highest degree of freedom in the selection of delay time,so it permits fine adjustments when mounted on a set.
