Part Number: MB2245



MFG: PHILIPS

Package Cooled: QFP52



Description: The MB2245 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high ou...


Urgent Purchase

MB2245 General Description


The MB2245 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The MB2245 device is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions.

The control function implementation minimizes external timing requirements. The device features two Output Enable (1OE, 2OE) inputs for easy cascading and two Direction (1DIR, 2DIR) inputs for direction control.

MB2245 Maximum Ratings

SYMBOL

PARAMETER

CONDITIONS

RATING

UNIT

VCC

DC supply voltage



0.5 to +7.0

V

IIK

DC input diode current

VI < 0

18

mA

VI

DC input voltage3



1.2 to +7.0

V

IOK

DC output diode current

VO < 0

50

mA

VOUT

DC output voltage3

output in Off or High state

0.5 to +5.5

V

IOUT

DC output current

output in Low state

128

mA

Tstg

Storage temperature range



65 to 150

°C

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction
temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

MB2245 Features

FEATURES
• 16-bit bidirectional bus interface
• Powerup 3-State
• Multiple VCC and GND pins minimize switching noise
• 3-State buffers
• Output capability: +64 mA/32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
  and 200V per Machine Model
• Inputs are disabled during 3-State mode

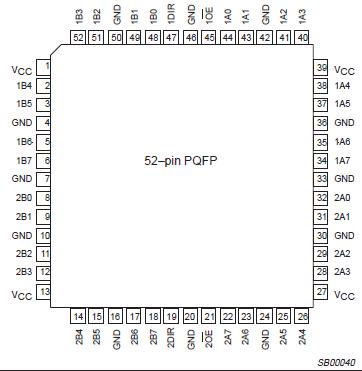

MB2245 Connection Diagram

MB2245 Connection Diagram

MB2245 datasheet

MB2245
PDF/DataSheet Download

Find MB2245 Suppliers

  • ·MB20
  • ETC [ETC]
  • Micro Power Resistors
  • 119405 KB
  • MB20 Datasheet Download
  • ·MB200
  • MICROSEMI [Microsemi Corporation]
  • RECTIFIERS
  • 47335 KB
  • MB200 Datasheet Download
  • ·MB201
  • MICROSEMI [Microsemi Corporation]
  • RECTIFIERS
  • 47335 KB
  • MB201 Datasheet Download
  • ·MB20101BAN
  • MURATA [Murata Manufacturing Co., Ltd.]
  • HIGH FREQUENCY CERAMIC CAPACITORS
  • 246165 KB
  • MB20101BAN Datasheet Download
  • ·MB20101BBN
  • MURATA [Murata Manufacturing Co., Ltd.]
  • HIGH FREQUENCY CERAMIC CAPACITORS
  • 246165 KB
  • MB20101BBN Datasheet Download
  • ·MB20101CAN
  • MURATA [Murata Manufacturing Co., Ltd.]
  • HIGH FREQUENCY CERAMIC CAPACITORS
  • 246165 KB
  • MB20101CAN Datasheet Download
  • ·MB20101CBN
  • MURATA [Murata Manufacturing Co., Ltd.]
  • HIGH FREQUENCY CERAMIC CAPACITORS
  • 246165 KB
  • MB20101CBN Datasheet Download
  • ·MB20101DAN
  • MURATA [Murata Manufacturing Co., Ltd.]
  • HIGH FREQUENCY CERAMIC CAPACITORS
  • 246165 KB
  • MB20101DAN Datasheet Download

Related Part Number

MB2245 Relative Products

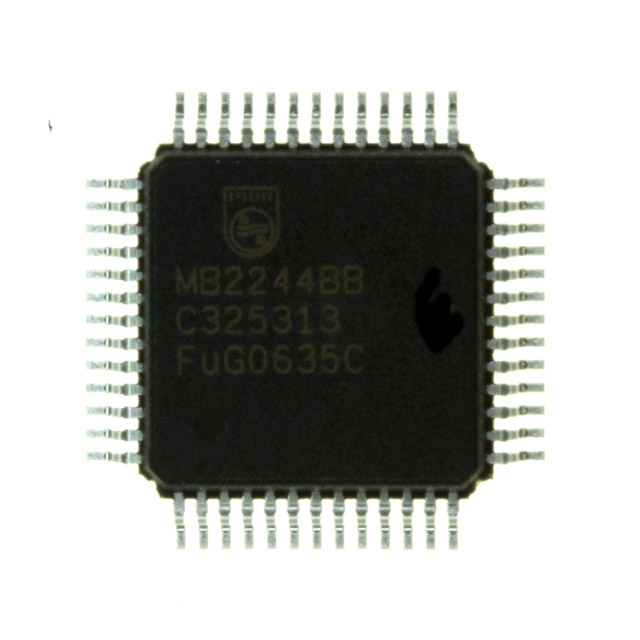

  • MB2244BB,557
