Part Number: MC14029B



MFG: MOTOROLA

Package Cooled: DIP

D/C: 670

Description: The MC14029B Binary/Decade up/down counter is constructed with MOS Pchannel and Nchannel enhancement mode devices in a ...


Urgent Purchase

MC14029B General Description


The MC14029B Binary/Decade up/down counter is constructed with MOS Pchannel and Nchannel enhancement mode devices in a single monolithic structure. The counter consists of type D flipflop stages with a gating structure to provide toggle flipflop capability.The counter can be used in either Binary or BCD operation. This complementary MOS counter finds primary use in up/down and difference counting and frequency synthesizer applications where low power dissipation and/or high noise immunity is desired. It is also useful in A/D and D/A conversion and for magnitude and sign generation.

MC14029B Maximum Ratings

Symbol Parameter Value Unit
VDD DC Supply Voltage Range 0.5 to +18.0 V
Vin,Vout
 Input or Output Voltage Range(DC or Transient) 0.5 to VDD + 0.5
 V
Iin,Iout
 Input or Output Current(DC or Transient)per Pin ±10 mA
PD Power Dissipation, per Package (Note 3.) 500 mW
TA Ambient Temperature Range 55 to +125
Tstg Storage Temperature Range 65 to +150
TL Lead Temperature(8Second Soldering) 260

MC14029B Typical Application

* Diode Protection on All Inputs
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Internally Synchronous for High Speed
* Logic EdgeClocked Design - Count Occurs on Positive Going Edge of Clock
* Asynchronous Preset Enable Operation
* Capable of Driving Two Lowpower TTL Loads or One Lowpower Schottky TTL Load Over the Rated Temperature Range
* Pin for Pin Replacement for CD4029B

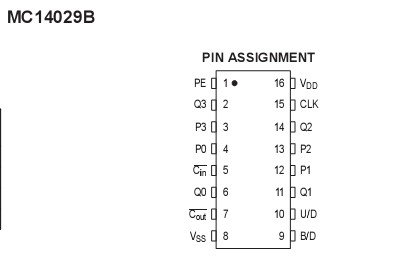

MC14029B Connection Diagram

MC14029B Connection Diagram
