Product Details

Description

Features:

` 4,194,304-word * 16-bit / 8,388,608-word * 8-bit electrically switchable configuration
` +3.0 V to 3.6 V power supply
` Access time..........80 ns MAX
` Operating current.. 20 mA MAX (5MHz)
` Standby current ..... ..10 A MAX
` Input/Output TTL compatible
` Three-state output

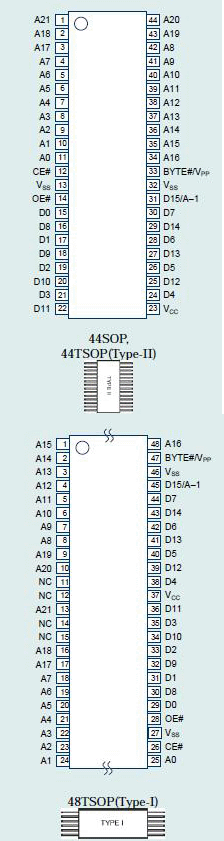

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Condition	Value	Unit
Operating temperature under bias	T_a	-	0 to 70
Storage temperature	T_stg	-	-55 to 125
Input voltage	V_I	relative to V_SS	-0.5 to V_CC + 0.5	V
Output voltage	V_O		-0.5 to V_CC + 0.5	V
Power supply voltage	V_CC		-0.5 to 5	V
Program power supply voltage	V_PP		-0.5 to 11.5	V
Power dissipation per package	P_D		1.0	W

Description

The MR27V6402G is a 64 Mbit electrically One Time Programmable Read-Only Memory that can be electrically switched between 4,194,304-word × 16-bit and 8,388,608-word × 8-bit by the state of the BYTE# pin. The MR27V6402G supports high speed asynchronous read operation using a single 3.3V power supply.
