Part Number: MSM52V1017L
Description: The MSM52V1017L is a 65,536-word by 16-bit CMOS static RAM featuring 2.7 V to 3.6 V power supply opera...
- Table of contents:
MSM52V1017L
-
Suppliers
DataSheet
General Description
MSM52V1017L General Description
The MSM52V1017L is a 65,536-word by 16-bit CMOS static RAM featuring 2.7 V to 3.6 V power supply operation and direct LVCMOS input/output compatibility. Since the circuitry is completely static, external clock and refreshing operations are unnecessary, making this device very easy to use. The MSM52V1017L can be used in the high-speed operation of an access time 85 ns due to adopting a high-performance CMOS technology and in the low current consumption of a standby current max. 40 A when there is no chip selection. In addition, the MSM52V1017L is provided with a chip enable signal (CE) suited to the expansion of a memory capacity, an output enable signal (OE) suited to the I/O bus line control, and a byte select signal (LB, UB) that can independently control the input/ output of a lower byte and an upper byte.
MSM52V1017L Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Power Supply Voltage | VCC | Ta = 25°C, for VSS | 0.5 to 4.6 | V |
| Pin Voltage | VT | 0.5* to VCC + 0.5 | V | |
| Power Dissipation | PD | Ta = 25°C | 0.7 | W |
| Operating Temperature | Topr | - | 0 to 70 | °C |
| Storage Temperature | Tstg | - | 55 to 125 | °C |
* 1.2 V Min. for pulse width less than 30 ns.
MSM52V1017L Features
• 65,536-word x16-bit configuration
• Power supply voltage: 2.7 V to 3.6 V
• Fully static operation
• Operating temperature range: Ta = 0°C to 70°C
• (Input/Output) LVCMOS compatible
• 3-state output
• Data retention available at power supply voltage 2 V
• Equal to Mask ROM/OTP in supply pin layout
• Package options:
- 44-pin 400 mil plastic TSOP (Type II) (TSOPII44-P-400-0.80-K) (Product : MSM52V1017L-xxTS-K) (TSOPII44-P-400-0.80-L) (Product : MSM52V1017L-xxTS-L) xx indicates speed rank.

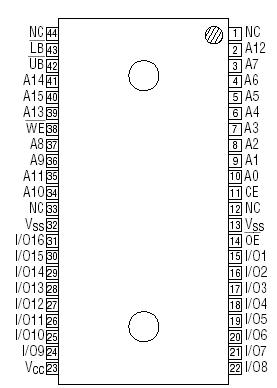

MSM52V1017L Connection Diagram
MSM52V1017L
