PTK25-D24-T515, US $ 26.47-31.41, PTK25-D24-T515 DataSheet download, circuit diagram from SeekIC.com

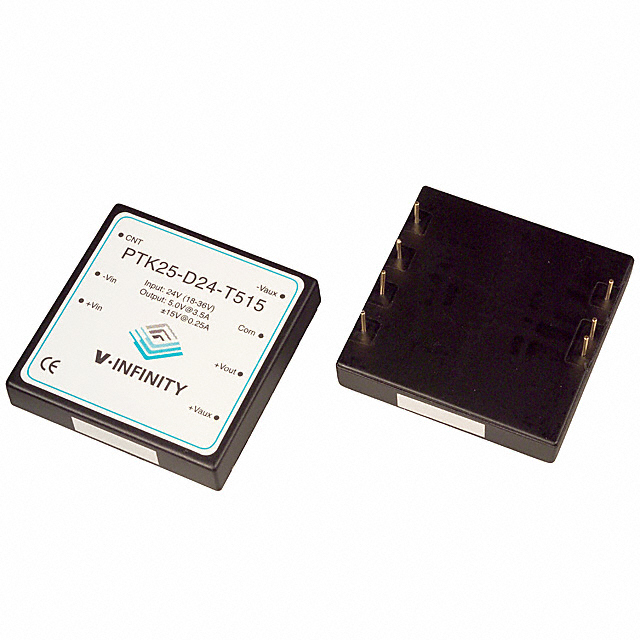

See larger image

SeekIC No. : 003804442 Detail

PTK25-D24-T515: CONVERTER DC/DC 5V+/-15V OUT

PTK25-D24-T515 Data Sheet

US $ 26.47~31.41 / Piece | Get Latest Price

Part Number:: PTK25-D24-T515
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100

Unit Price
$31.41
$29.16
$27.82
$26.47

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PTK25-D24-D12 evaluate
US $26.47 - 31.41 / Piece

CONVERTER DC/DC +/-12V DUAL OUT
PTK25-D24-D12-T evaluate
US $29.38 - 34.86 / Piece

CONVERTER DC/DC +/-12V OUT 24W
PTK25-D24-D15 evaluate
US $26.47 - 31.41 / Piece

CONVERTER DC/DC +/-15V OUT 24W

Product Details

Quick Details

Input Signal Type :	Differential	Series:	V-Infinity PTK25
Manufacturer:	CUI Inc	Type:	Isolated
Number of Outputs:	3	Voltage - Input (Min):	18V
Voltage - Input (Max):	36V	Voltage - Output 1:	5V
Voltage - Output 2:	15V	Voltage - Output 3:	-15V
Current - Output (Max):	3.5A, 250mA, 250mA	Power (Watts) - Manufacture Series:	25W
Voltage - Isolation:	500V	Features:	-
Mounting Type:	Through Hole	Package / Case:	8-DIP Module (7 Leads)
Size / Dimension:	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)	Packaging:	-
Operating Temperature:	-20°C ~ 71°C

Description

Manufacturer: CUI Inc
Type: Isolated
Voltage - Output 1: 5V
Features: -
Mounting Type: Through Hole
Packaging: -
Voltage - Input (Min): 18V
Efficiency: -
Power (Watts) - Manufacture Series: 25W
Voltage - Input (Max): 36V
Voltage - Isolation: 500V
Package / Case: 8-DIP Module (7 Leads)
Size / Dimension: 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Operating Temperature: -20°C ~ 71°C
Number of Outputs: 3
Voltage - Output 2: 15V
Voltage - Output 3: -15V
Series: V-Infinity PTK25
Current - Output (Max): 3.5A, 250mA, 250mA

Parameters:

Technical/Catalog Information	PTK25-D24-T515
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	18 ~ 36V
Output	5V, ±15V
Power (Watts)	25W
Number of Outputs	3
1st Output	5 VDC @ 3.5A
2nd Output	15 VDC @ 250mA
3rd Output	-15 VDC @ 250mA
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	8-DIP
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTK25 D24 T515 PTK25D24T515 102 1102 ND 1021102ND 102-1102
