Part Number: RF3110
Description: The RF3110 is a high-power, high-efficiency power amplifier module with integrated power control. The ...
- Table of contents:
RF3110
-
Suppliers
DataSheet
General Description
RF3110 General Description
The RF3110 is a high-power, high-efficiency power amplifier module with integrated power control. The device is self-contained with 50 input and output terminals. The power control function is also incorporated, eliminating the need for directional couplers, detector diodes, power control ASICs and other power control circuitry; this allows the module to be driven directly from the DAC output. The device is designed for use as the final RF amplifier in GSM/DCS and PCS handheld digital cellular equipment and other applications in the 880MHz to 915MHz, 1710MHz to 1785MHz and 1850MHz to 1910MHz bands. On-board power control provides over 35dB of control range with an analog voltage input; and, power down with a logic "low" for standby operation.
RF3110 Maximum Ratings
| Parameter | Rating | Unit |
| Supply Voltage | -0.5 to +6.0 | VDC |
| Power Control Voltage (VRAMP) | -0.5 to +1.8 | V |
| Input RF Power | +11.5 | dBm |
| Duty Cycle at Max Power | 37.5 | % |
| Output Load VSWR | 8:1 | |
| Operating Case Temperature | -40 to +85 | |
| Storage Temperature | -55 to +150 |
RF3110 Features
• Complete Power Control Solution
• Single 2.9V to 5.5V Supply Voltage
• +35dBm GSM Output Power at 3.5V
• +33dBm DCS/PCS Output Power at 3.5V
• 55% GSM and 55% DCS/PCS EFF
• 10mmx10mm Package Size
• Single 2.9V to 5.5V Supply Voltage
• +35dBm GSM Output Power at 3.5V
• +33dBm DCS/PCS Output Power at 3.5V
• 55% GSM and 55% DCS/PCS EFF
• 10mmx10mm Package Size
RF3110 Typical Application
• 3V Dual-Band GSM Handsets
• Commercial and Consumer Systems
• Portable Battery-Powered Equipment
• GSM, E-GSM and DCS/PCS Products
• GPRS Class 10 Compatible
• Commercial and Consumer Systems
• Portable Battery-Powered Equipment
• GSM, E-GSM and DCS/PCS Products
• GPRS Class 10 Compatible

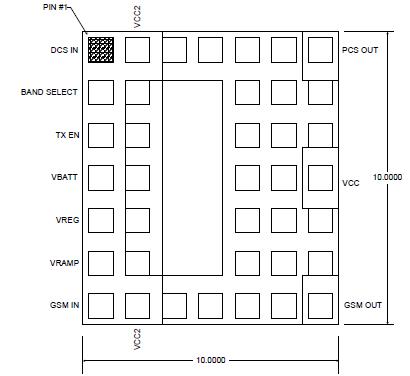

RF3110 Connection Diagram
RF3110
