Features:

• Built-in RSSI function
• Operating voltage range: VCC = 1.1 to 4.0V
• Low current consumption: ICC = 1.5mA
• Low battery detection circuit (alarm function): 1.05V
• Voltage regulator: Vreg = 1.0V (Typ.)
• Mixer operating frequency: 10 to 50MHz
• High transmitting rate: 1200 / 2400bps
• FSK Data reception
• Package type: 20-SSOP (0.65mm)

Pinout

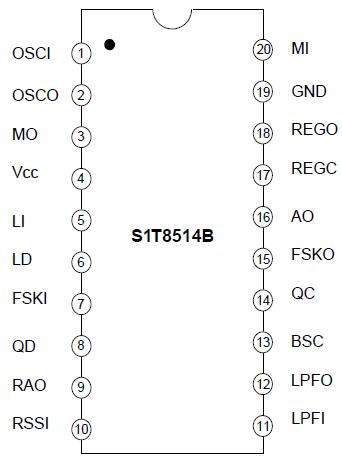

Connection Diagram

Specifications

Characteristic	Symbol	Value	Unit
Supply Voltage	V_CC(MAX)	4	V
Power Dissipation	P_D	800	mW
Operating Temperature	T_OPR	-20 ~ +70
Storage Temperature	T_STG	-55 ~ +125

Description

The S1T8514B is designed for FM IF detection on the pager set. It includes a voltage regulator, low battery detection circuit, mixer, oscillator, FSK comparator and limiting IF Amplifier. Also S1T8514B provides the RSSI function for RF level monitoring.
