S1T8513A

Features: • Operating voltage range: 1.0 ~ 4.0V• Typical supply current: 1.1mA at 1.4V• Low battery detection circuit (alarm function): 1.05V• Voltage regulator : Vreg = 1.0V (Typ.)• Mixer operating frequency: 10 ~ 50MHz• High transmitting rate: 1200 / 2400bps&#...

product image

S1T8513A Picture
See larger image
SeekIC No. : 004481507 Detail

S1T8513A: Features: • Operating voltage range: 1.0 ~ 4.0V• Typical supply current: 1.1mA at 1.4V• Low battery detection circuit (alarm function): 1.05V• Voltage regulator : Vreg = 1.0V...

S1T8513A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1T8513A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage range: 1.0 ~ 4.0V
• Typical supply current: 1.1mA at 1.4V
• Low battery detection circuit (alarm function): 1.05V
• Voltage regulator : Vreg = 1.0V (Typ.)
• Mixer operating frequency: 10 ~ 50MHz
• High transmitting rate: 1200 / 2400bps
• FSK Data reception
• Package type: 20-SSOP (0.65mm)

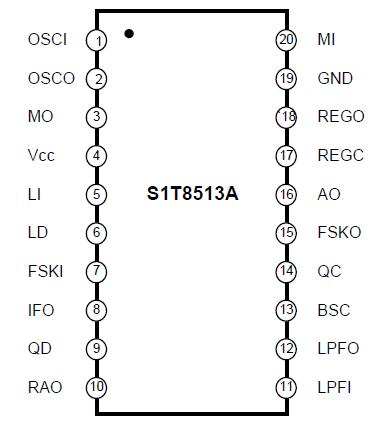

Pinout

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Max. Supply Voltage
VCC(MAX)
4
V
Power Dissipation
PD
800
mW
Operating Temperature
TOPR
-20 ~ +70



Description

The S1T8513A is designed for FM IF Detection on the pager set. It includes a voltage regulator, low battery detection circuit, Mixer, Oscillator, FSK comparator and limiting IF Amplifier.
