Features:

• Adjusts sending and receiving attenuation length
• Regulated voltage output for external dialer
• Linear interface for DTMF
• Suitable for ceramic transducers
• Mute function


Pinout

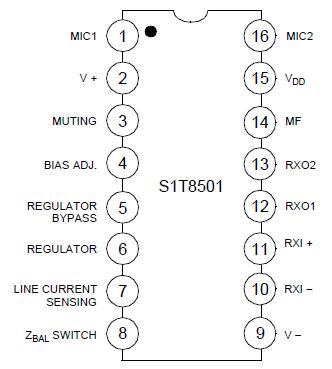

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Line Voltage (3msec max)
VL
22
V
Forward Line Current
ILF
150
mA
Reverse Line Current
ILR
-150
mA
Power Dissipation (Ta = 70)
Pd
1
W
Operating Temperature
TOPR
-45 ~ +70
Storage Temperature
TSTG
-65 ~ +150



Description

The S1T8501 is a speech network integrated circuit which includes the following components: transmit amp, receive amp, DTMF amp, voltage regulator, line equalizer, and voltage comparator. It handles the voice signal, performing the 2/4 wires interface and changing the gain on both sending and receiving amplifiers to compensate the line current. The S1T8501 can work in fixed gain mode.
