S1T8515A

Features: • Internal A/D converter for 4 level FSK (2-bit ADC)• High transmission rate: 6400bps (Max.)• Operating voltage range: VCC1 = 1.1 ~ 4.0V• Typical supply current: 1.5mA at 1.4V• Low battery detection circuit (alarm function): 1.05V• Mixer operating freq...

product image

S1T8515A Picture
See larger image
SeekIC No. : 004481509 Detail

S1T8515A: Features: • Internal A/D converter for 4 level FSK (2-bit ADC)• High transmission rate: 6400bps (Max.)• Operating voltage range: VCC1 = 1.1 ~ 4.0V• Typical supply current: 1....

S1T8515A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1T8515A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internal A/D converter for 4 level FSK (2-bit ADC)
• High transmission rate: 6400bps (Max.)
• Operating voltage range: VCC1 = 1.1 ~ 4.0V
• Typical supply current: 1.5mA at 1.4V
• Low battery detection circuit (alarm function): 1.05V
• Mixer operating frequency: 10 ~ 50MHz
• Package type: 24-SSOP (0.65mm)


Pinout

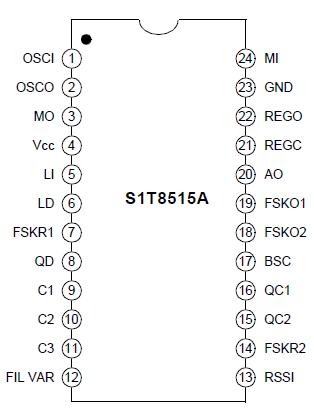

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Supply Voltage
VCC(MAX)
4
V
Power Dissipation
PD
760
mW
Operating Temperature
TOPR
-20 ~ +70
Storage Temperature
TSTG
-55 ~ +125



Description

The S1T8515A is a designed for FM detection on the FLEX pager set. It consists of an Oscillator, Mixer, Limiting IF Amp. Quadrature  Detector, Regulator, RSSI (Received Signal Strength Indicator), Bit Rate Filter, and a 2-level / 4-level FSK comparator. It has a 24-SSOP (0.65mm)Surface Mount Package.
