Product Details

Description



Features:

Memory
• 512 ´ 4-bit RAM (including LCD display RAM)
• 8,192 ´ 8-bit ROM

28 I/O Pins
• I/O: 26 pins (44-pin QFP, 42-pin SDIP)
• Output only: 2 pins (44-pin QFP)

LCD Controller/Driver
• 12 segments and 8 common terminals (3, 4, and 8 common selectable)
• Internal resistor circuit for LCD bias
• All dot can be switched on/off

8-bit Basic Timer
• 4 interval timer functions
• Watch-dog timer

16-bit Timer/Counter 1
• Programmable 16-bit timer/counter
• Arbitrary clock output
• External event counter
• External clock signal divider
• Configurable as two 8-bit timer/counters
• Serial I/O interface clock generator

Watch Timer
• Time interval generation: 0.5 s, 3.9 ms at 32768 Hz
• Four frequency outputs to BUZ pin
• Clock source generation for LCD

8-bit Serial I/O Interface
• 8-bit transmit/receive mode
• 8-bit receive mode
• LSB-first or MSB-first transmission selectable
• Internal or external clock source

Comparator
• 4 channel mode: internal reference (4-bit resolution)
• 3 channel mode: external reference

Interrupts
• Four internal vectored interrupts
• Five external vectored interrupts
• Two quasi-interrupts

Bit Sequential Carrier
• Supports 16-bit serial data transfer in arbitrary format

Memory-Mapped I/O Structure
• Data memory bank 15

Power-Down Modes
• Idle mode (only CPU clock stops)
• Stop mode (main system oscillation stops)
• Sub system clock stop mode

Oscillation Sources
• Crystal, ceramic, or RC for main system clock
• Crystal oscillator for subsystem clock
• Main system clock frequency: 0.4 MHz-6 MHz
• Subsystem clock frequency: 32.768 kHz
• CPU clock divider circuit (by 4, 8, or 64)

Instruction Execution Times
• 0.67, 1.33, 10.7 µs at 6 MHz (main)
• 0.95, 1.91, 15.3 µs at 4.19 MHz (main)
• 122 µs at 32.768 kHz (subsystem)

Operating Temperature
• 40 to 85

Operating Voltage Range
• 1.8 V to 5.5 V

Package Type
• 44-pin QFP, 42-pin SDIP

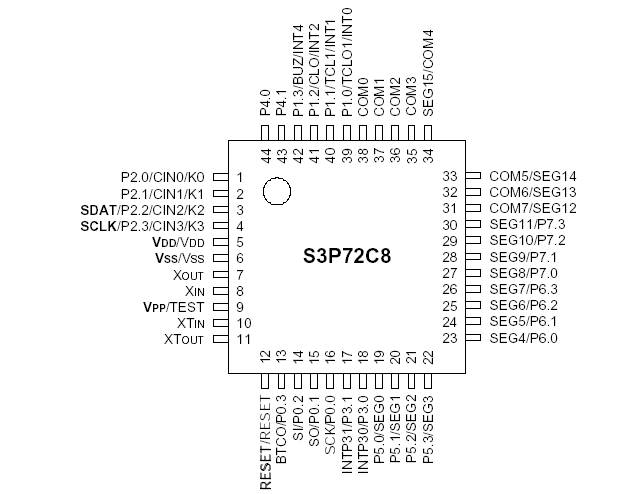

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
All I/O pins active
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O pin active
-15
mA
All I/O pins active
35
Output current low
IOL
One I/O pin active
+ 30 (Peak value)
mA
+ 15*
Total for ports 0, 29
+ 100 (Peak value)
+ 60*
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value *Duty.


Description

The S3P72C8 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

With an up-to-96-dot LCD direct drive capability flexible 16-bit timer/counter, and 4-chanel comparator, the S3P72C8 offers an excellent design solution for a low CDP and a card reader.

Up to 28 pins of the 44-pin QFP or up to 26 pins of the 42-pin SDIP package can be dedicated to I/O. Eight vectored interrupts provide fast response to internal and external events. In addition, the S3P72C8's advanced CMOS technology provides for low power consumption.
