SA9105E

Features: · Performs unidirectional one, two or three phase power and energy measurement· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters· Operates over a wide temperature range· Uses current transformers for current sensing· Excellent long term stability· Easily ...

product image

SA9105E Picture
See larger image
SeekIC No. : 004483834 Detail

SA9105E: Features: · Performs unidirectional one, two or three phase power and energy measurement· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters· Operates over a wide temp...

SA9105E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA9105E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Performs unidirectional one, two or three phase power and energy measurement
· Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters
· Operates over a wide temperature range
· Uses current transformers for current sensing
· Excellent long term stability
· Easily adaptable to different signal levels
· Precision voltage reference on-chip
· Three pulse rate options available
· Protected against ESD


Pinout

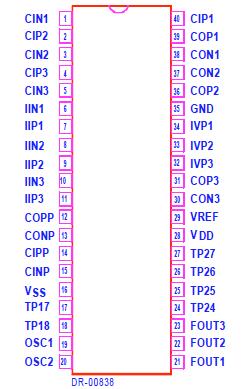

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -40 +85 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other conditions above those indicated in the operation sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA9105E Three Phase unidirectional Power/Energy metering integrated circuit generates a pulse rate
output, the frequency of which is proportional to the power consumption. The SA9105E performs the calculation for active power.

The method of calculation SA9105E takes the power factor into account.

Energy consumption of SA9105E is determined by the power measurement being integrated over time.

The output of this innovative universal three phase power/energy metering integrated circuit, SA9105E is ideally suited for applications such as residential and industrial energy metering and control.

The SA9105E integrated circuit is available in 40 pin dual-in-line plastic (DIP-40), as well as in 44 pin plastic leaded chip carrier (PLCC-44) package types.
