Features:

` Single-chip stereo filter and codec
` Wide operating voltage range: 2.7 to 5.5 V
` Low-power consumption: 98 mW; 3.0 V
` Sleep mode for low power and low Electromagnetic Interference (EMI)
` Transparent serial audio data mode in sleep
` IEC 958 digital output
` Peak level detector for start of track detection or VU meter
` Versatile fade processor; slow/fast fade, mute, 12 dB attenuation
` Serial audio interface for I2S or EIAJ formats
` Error concealment
` Three-wire L3 bus microcontroller interface
` Three sample rates:
32 kHz
44.1 kHz
48 kHz
` Internal or external clock source
` Three programmable outputs
` Small surface mounted package (SOT307).


Pinout

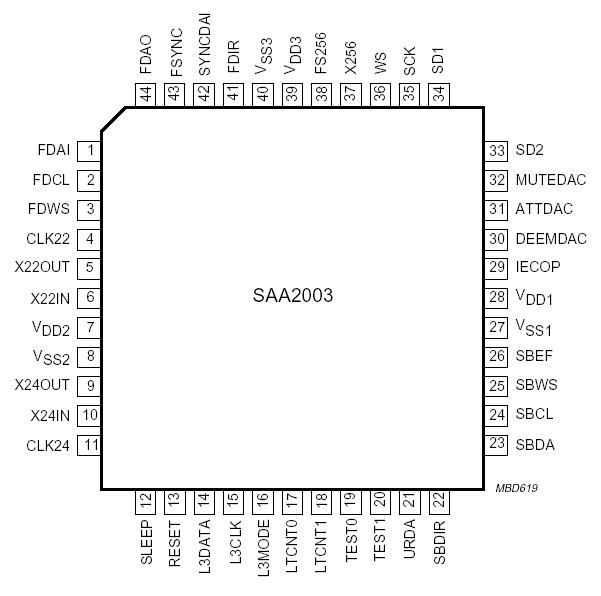

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD

VI

II

VO

IO

IDDQ

Tstg

Tamb

Ves1

Ves2		 supply voltage

input voltage

input current

output voltage

output current

quiescent supply current

storage temperature

operating ambient temperature

electrostatic handling

electrostatic handling
note 1



clocks stopped









note 2

note 3		 -0.5

-0.5

-

-0.5

-

-

-65

-40

-2000

-200		 +6.5

VDD + 0.5

20

+6.5

20

100

+150

+85

+2000

+200		 V

V

mA

V

mA

mA

°C

°C

V

V
Notes
1. The input voltage (VI) may not exceed 6.5 V.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 k resistor.
3. Equivalent to discharging a 200 pF capacitor through a 2.5 mH inductor.


Description

The SAA2003 performs the sub-band filtering and audio frame codec functions in the Precision Adaptive Sub-band Coding (PASC) system. SAA2003 can be used as a stand-alone decoder for playback only applications, but requires the addition of an Adaptive Allocation and Scale Factor processor (SAA2013) in order to perform PASC encoding in a DCC record system.
