SAA2013

Features: · Wide operating voltage range: 2.7 to 5.5 V· Low power consumption: 13 mW; 3.0 V· Low power decode mode: 1 mW; 5.0 V· Sleep mode for low power and low Electromagnetic Interference (EMI)· Sophisticated allocation algorithm· Optimum sound quality· Three-wire L3 bus microcontroller interfa...

product image

SAA2013 Picture
See larger image
SeekIC No. : 004483881 Detail

SAA2013: Features: · Wide operating voltage range: 2.7 to 5.5 V· Low power consumption: 13 mW; 3.0 V· Low power decode mode: 1 mW; 5.0 V· Sleep mode for low power and low Electromagnetic Interference (EMI)· ...

SAA2013 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA2013
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide operating voltage range: 2.7 to 5.5 V
· Low power consumption: 13 mW; 3.0 V
· Low power decode mode: 1 mW; 5.0 V
· Sleep mode for low power and low Electromagnetic Interference (EMI)
· Sophisticated allocation algorithm
· Optimum sound quality
· Three-wire L3 bus microcontroller interface
· Stereo or 2-channel mono recording
· Small surface mounted package (QFP; SOT307).

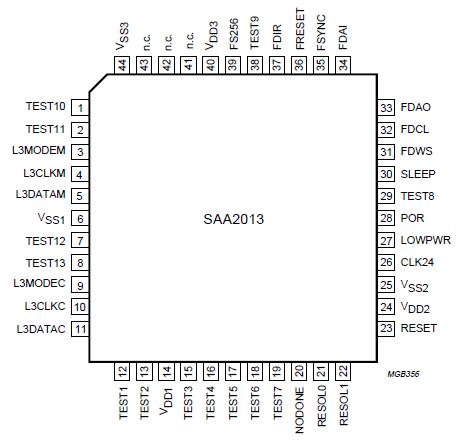

Pinout

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage   -0.5 +6.5 V
VI input voltage   -0.5 VDD + 0.5 V
II input current   - 20 mA
VO output voltage   -0.5 +6.5 V
IO output current   - 20 mA
Tstg storage temperature   -65 +150 °C
Tamb operating ambient temperature   -40 +85 °C
Ves electrostatic handling

Human Body Model (HBM)

Machine Model (MM)		 note 1

note 2		 -2000

-200		 +2000

+200		 V

V

Notes
1. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.
2. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

The SAA2013 performs the adaptive allocation and scaling function in the Precision Adaptive Sub-band Coding (PASC) system. It is not required in playback only applications, and is only used during recording. To complete the PASC processor, a SAA2003 stereo filter and codec is required.
