SAA2022

Features: · Integrated error correction encoder/decoder function with Digital Compact Cassette (DCC) optimized algorithms· Control of capstan servo during recording and after recording by microcontroller· Frequency and phase regulation of capstan servo during playback· Choice of two Dynamic Random...

product image

SAA2022 Picture
See larger image
SeekIC No. : 004483882 Detail

SAA2022: Features: · Integrated error correction encoder/decoder function with Digital Compact Cassette (DCC) optimized algorithms· Control of capstan servo during recording and after recording by microcontr...

SAA2022 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA2022
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated error correction encoder/decoder function with Digital Compact Cassette (DCC) optimized algorithms
· Control of capstan servo during recording and after recording by microcontroller
· Frequency and phase regulation of capstan servo during playback
· Choice of two Dynamic Random Access Memory (DRAM) types operating in page mode
· Scratch pad RAM area available to microcontroller in system DRAM
· Low power standby mode
· I2S interface
· Microcontroller interface for high-speed transfer burst rates up to 170 kbytes per second
· SYSINFO and AUXILIARY data flags on microcontroller interface
· Protection against invalid AUXILIARY data
· +4 V operating voltage capability.


Pinout

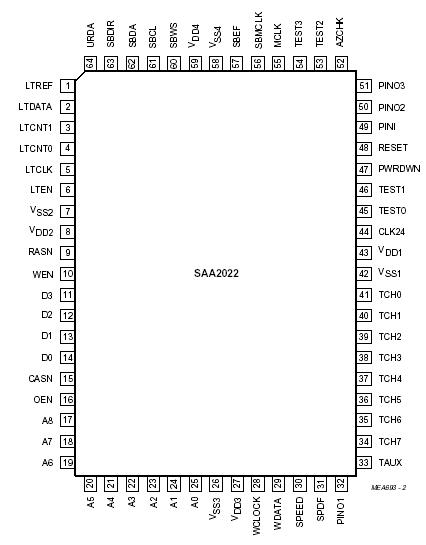

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD

VI

ISS

IDD

II

IO

Ptot

Tstg

Tamb

Ves1

Ves2		 supply voltage

input voltage

supply current in VSS

supply current in VDD

input current

output current

total power dissipation

storage temperature

operating ambient temperature

electrostatic handling

electrostatic handling		 note 1

















note 2

note 3		 -0.5

-0.5

-

-

-10

-20

-

-55

-40

-1500

-70		 +6.5

VDD + 0.5

-100

100

+10

+20

500

+150

+85

+1500

+70		 V

V

mA

mA

mA

mA

mW

°C

°C

V

V
Notes
1. Input voltage should not exceed 6.5 V unless otherwise specified.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 kW series resistor.
3. Equivalent to discharging a 200 pF capacitor through a 0 W series resistor.


Description

Performing the tape formatting and error correction functions for DCC applications, the SAA2022 can be used in conjunction with the PASC (SAA2002/SAA2012), tape equalization (SAA2032), read amplifier (TDA1317 or TDA1318) and write amplifier (TDA1316 or TDA1319) circuits of SAA2022 to implement a full signal processing system.
