SAA2032

Features: · Analog-to-digital conversion, demultiplexing, equalization and zero crossing of time multiplexed analog read amplifier signal· Microcontroller interface· Search mode envelope, label and virgin detection of the AUX channel· Search mode tape speed measurement· Simplified external biassin...

product image

SAA2032 Picture
See larger image
SeekIC No. : 004483884 Detail

SAA2032: Features: · Analog-to-digital conversion, demultiplexing, equalization and zero crossing of time multiplexed analog read amplifier signal· Microcontroller interface· Search mode envelope, label and ...

SAA2032 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA2032
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Analog-to-digital conversion, demultiplexing, equalization and zero crossing of time multiplexed analog read amplifier signal
· Microcontroller interface
· Search mode envelope, label and virgin detection of the AUX channel
· Search mode tape speed measurement
· Simplified external biassing
· Reduced power consumption
· Analog eye output
· 4 V nominal operating voltage capability.


Pinout

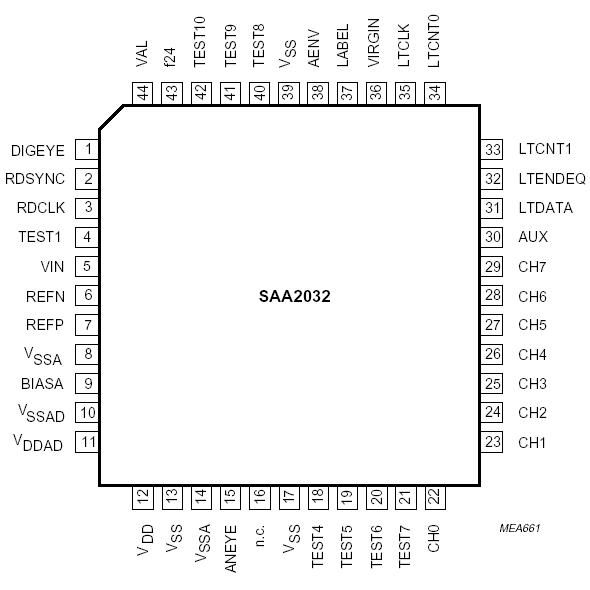

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD

VI

ISS

IDD

II

IO

Ptot

Tstg

Tamb

Ves1

Ves2		 supply voltage

input voltage

supply current in VSS

supply current in VDD

input current

output current

total power dissipation

storage temperature

operating ambient temperature

electrostatic handling

electrostatic handling
note 1
















note 2

note 3		 -0.5

-0.5

-

-

-10

-20

-

-55

-40

-1500

-70		 +6.5

VDD + 0.5

-100

100

10

20

550

+150

+85

+1500

+70		 V

V

mA

mA

mA

mA

mW

°C

°C

V

V
Notes
1. Input voltage should not exceed 6.5 V unless otherwise specified.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.
3. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

Performing the Digital Equalizing function in the Digital Compact Cassette (DCC) system, the SAA2032 is intended for use in conjunction with the SAA2022, read amplifier TDA1317 or TDA1318.
