MFG:15400 Package Cooled:SIEMENS
MFG: 15400
Package Cooled: SIEMENS
Description: The CMOS circuit SDA5649 is intended for use in video cassette recorders to retrieve control dataof the PDC system ...
|
Parameter |
Symbol |
Limit Values |
Unit |
Test | ||
|
min. |
typ. |
max. | ||||
|
Ambient temperature |
TA |
0 |
|
70 |
°C |
in operation |
|
Storage temperature |
Tstg |
40 |
|
125 |
°C |
by storage |
|
Total power dissipation |
Ptot |
|
|
300 |
mW |
|
|
Power dissipation per output |
PDQ |
|
|
10 |
mW |
|
|
Input voltage |
VIM |
0.3 |
|
6 |
V |
|
|
Supply voltage |
VDD |
0.3 |
|
6 |
V |
|
|
Thermal resistance |
RthSU |
|
|
80 |
K/W |
|
*Single-chip receiver for PDC data, broadcast either
in Broadcast Data Service Packet (BDSP) 8/30/2according to CCIR teletext system B, or
in dedicated line no. 16 of the vertical blanking interval(VPS)
*Reception of Unified Date and Time (UDT), Network
Identification code (NIC), and Short Program Label (SPL)
broadcast in BDSP8/30/1
*Reception of bytes no.38 through 45 of teletext header rowcontaining clock time
*Low external components count
*On-chip data and sync slicer
*I2C-Bus interface for communication with externalmicrocontroller
*Selection of PDC/VPS operating mode software controlledbyI2C-Bus register
*Pin and software compatible to PDC/VPS DecoderSDA5648
*Supply voltage: 5V±10%
*Video input signal level: 0.7 Vpp to 1.4 Vpp
*Technology: CMOS

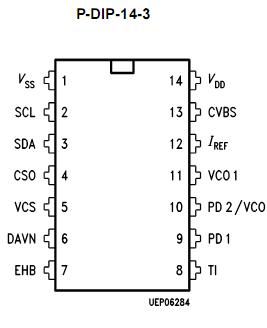

*Package: P-DIP-14-3 and P-DSO-20-1
*Operating temperature range: 0 to 70°C
SDA5649
PDF/DataSheet Download
