MFG:140 Package Cooled:SIEMENS
MFG: 140
Package Cooled: SIEMENS
Description: The core of the picture processor (see block diagram) is formed of the Image-lmproving Processor (IIP)...
The core of the picture processor (see block diagram) is formed of the Image-lmproving Processor (IIP) and the Multi-Picture Processor (MPP). The IIP is responsible for noise and cross-color reduction, while the MPP together with the new Memory Sync Controller implements the functions multi-picture, tuner scanning, picture-in-still and still-in-picture.
| Parameter | Symbol |
Limit Values |
Unit | Remarks | |
| min. | max. | ||||
| Ambient temperature | TA | 0 | 70 | ||
| Storage temperature | Tstg | 40 | 125 | ||
| Total power dissipation | Ptot | 1 | W | ||
| Supply voltage | VDD | 0.3 | 6 | V | |
| Input/output voltage | VI/Q | 0.3 | 6 | V | |
| Thermal resistance system-air | Rth SA | 38 | K/W | with heat sink | |

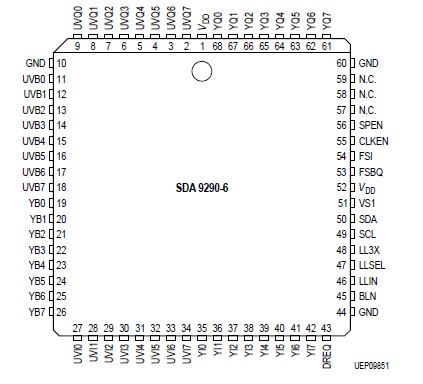

SDA9290-6
PDF/DataSheet Download
The Display Processor SDA 9280 is an integrated triple 9 Bit D/A converter which performs digital enhancements and manipulations of digital video component signals. Multiple input data formats are accepted. Operation with normal as well as doubled horizontal...
The clock sync generator SDA9257consists essentially of the following function blocks (refer to block diagram):Analog clamping7-bit, 27-MHz A/D converter Sync processor with digital horizontal PLL, vertical sync processor and pulse generator Clock generator ...
The SDA 9254-2 is a combination of the TV-SAM SDA 9253 and an adaptive recursive filter to achieve a reduction of noise for video signals. To get a closed loop one of the two output ports of the triple port memory is connected internally to the noise reducti...
The SDA 9253 is a triple port 2605056 bit dynamic sequential-access memory for high-data-rate video applications. SDA 9253 is organized as 212 rows by 64 columns by 16 arrays by 12 bit to allow for the storage of 12-bit planes of a TV field (NTSC, PAL, SECAM...
