Part Number: SDA 5642-6/X









Description: The SDA 5642-6 VPS decoder chip receives all VPSdata.


Urgent Purchase

SDA 5642-6/X General Description


The SDA 5642-6 VPS decoder chip receives all VPSdata.

SDA 5642-6/X Maximum Ratings

Parameter

Symbol

Limit Values

Unit

Test
Condition

min.

typ.

max.

Ambient temperature

TA

0



70

°C

in operation

Storage temperature

Tstg

40



125

°C

by storage

Total power dissipation

Ptot





300

mW



Power dissipation per output

PDQ





10

mW



Input voltage

VIM

0.3



6

V



Supply voltage

VDD

0.3



6

V



Thermal resistance

RthSU





80

K/W



SDA 5642-6/X Features

•On chip data slicer
•Low external component count
•I2C-Bus interface communication with external microcontroller
•5 V supply voltage
•Video input signal level: 0.7 Vpp to 2.0 Vpp
•Technology: CMOS
•P-DIP-14-1 and P-DSO-20-1 package

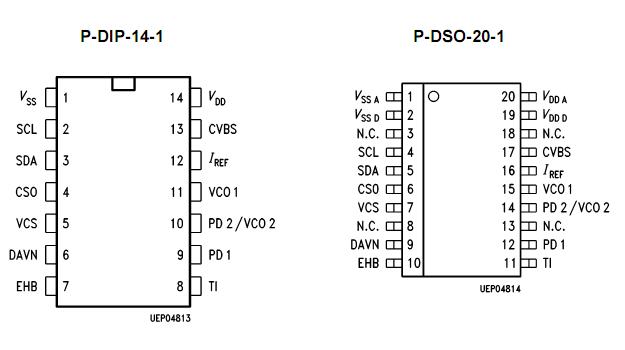

SDA 5642-6/X Connection Diagram

SDA 5642-6/X Connection Diagram

SDA 5642-6/X datasheet
