Features: • Ideal for Notebook Computers, PDAs, and Other Small Portable Audio Devices• 1.1W to 8- BTL Load from 5V Supply at THD =1% (Typical)• Excellent PSRR: Direct Connection to the Battery• Fast Turn On Time• Unity Gain Stable• 2.5V to 5.5V Operation•...
SGM4890: Features: • Ideal for Notebook Computers, PDAs, and Other Small Portable Audio Devices• 1.1W to 8- BTL Load from 5V Supply at THD =1% (Typical)• Excellent PSRR: Direct Connection t...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The SGM4890 is a 1.1-W, fully integrated, audio power amplifier. It is designed to maximize audio performance in portable applications such as mobile phone. The portable application requires audio power amplifier has minimum of external components and can operate from a single 2.5V to 5.5V power supply. It is capable of delivering 1.1W of continuous output power with less than 1% distortion(THD + N)when it drives an 8 speaker from a 5.0V power supply.
The SGM4890 features a low-power consumption shutdown mode, which is achieved by driving the shutdown pin with a logic low. Additionally, the product features an internal thermal shutdown protection mechanism.
The SGM4890 does not require output coupling capacitors or bootstrap capacitors, and therefore is ideally suited for mobile phone and other low voltage applications where minimal power consumption is a primary requirement.
For maximum flexibility, the SGM4890 provides an externally controlled gain (with resistors), as well as an externally controlled turn-on time (with the bypass capacitor). When using a 1F bypass capacitor, it offers 110ms wake up time when V+ is equal to 5.0V.

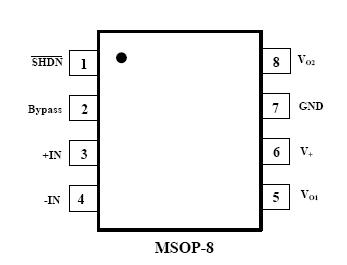

The SGM4890 is available in CSP-9 and MSOP-8 packages. It operates over an ambient temperature range of 40 to +85.
