Purchase SM8707, In-stock SM8707 From SeekIC.
Part Number: SM8707
Description: The SM8707 series are dual-PLL clock generator ICs, using a 27MHz master clock, that generate nd...
- Table of contents:
SM8707
-
Suppliers
DataSheet
General Description
SM8707 General Description
The SM8707 series are dual-PLL clock generator ICs, using a 27MHz master clock, that generate ndependent audio clock, video clock, and signal processor clock outputs needed in DVD player/recorder applications. Each PLL loop filter and crystal oscillator circuit are built-in and require no external omponents, resulting in highprecision clocks. The lineup includes devices that support both 44.1/48kHz audio sampling frequencies (fs), switchable using a control pin. The sampling frequency can be switched during operation without enerating any output spike noise.
SM8707 Maximum Ratings
| Parameter |
Symbol |
Condition |
Rating |
Unit |
| Supply voltage range |
VDD1, VDD2, VDD3 |
-0.3 to 6.5 |
V | |
| Supply voltage deviation |
VDD1 VDD2 , VDD1 VDD3 , VDD2 VDD3 |
± 0.1 |
V | |
| Input voltage range |
VIN |
-0.3 to VDD+0.3 |
V | |
| Output voltage range |
VOUT |
-0.3 to VDD + 0.3 |
V | |
| Power dissipation |
PD |
165 |
mW | |
| Storage temperature range |
Tstg |
-55 to 125 |
SM8707 Features
`Supply voltage: 3.0 to 3.6V
`Low current consumption: 35mA typ.(VDD= 3.3V, all outputs with no load)
`27MHz master clock (internal PLL reference clock)
`PLL loop filter built-in
`Crystal oscillator circuit built-in
`Sampling frequency fs: 44.1/48kHz
`16-pin VSOP package (Pb free)
`Generated clocks (Refer to "Output Frequency Listing" on page 18 for details.)
`Low current consumption: 35mA typ.(VDD= 3.3V, all outputs with no load)
`27MHz master clock (internal PLL reference clock)
`PLL loop filter built-in
`Crystal oscillator circuit built-in
`Sampling frequency fs: 44.1/48kHz
`16-pin VSOP package (Pb free)
`Generated clocks (Refer to "Output Frequency Listing" on page 18 for details.)
SM8707 Typical Application
·DVD players/recorders
·DVD car navigation system
·DVD car navigation system

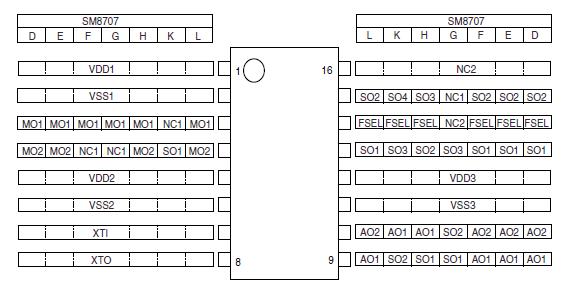

SM8707 Connection Diagram
SM8707
PDF/DataSheet Download
- Datasheet: SM8707
- File Size: 137031 KB
- Manufacturer: NPC [Nippon Precision Circuits Inc]
- Click here to Download
