SPT7755

Features: • 1:2 Demuxed ECL compatible outputs• Wide input bandwidth 900 MHz• Low input capacitance 15 pF• Metastable errors reduced to 1 LSB• Monolithic for low cost• Gray code outputApplication• Digital oscilloscopes• Transient capture• Rad...

product image

SPT7755 Picture
See larger image
SeekIC No. : 004501418 Detail

SPT7755: Features: • 1:2 Demuxed ECL compatible outputs• Wide input bandwidth 900 MHz• Low input capacitance 15 pF• Metastable errors reduced to 1 LSB• Monolithic for low cost...

SPT7755 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPT7755
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1:2 Demuxed ECL compatible outputs
• Wide input bandwidth 900 MHz
• Low input capacitance 15 pF
• Metastable errors reduced to 1 LSB
• Monolithic for low cost
• Gray code output


Application

• Digital oscilloscopes
• Transient capture
• Radar, EW, ECM
• Direct RF down-conversion


Pinout

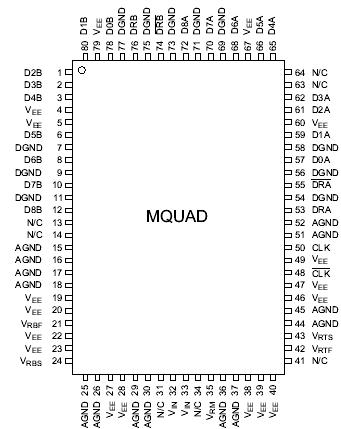

Connection Diagram


Specifications

Supply Voltages
Negative Supply Voltage (VEE TO GND) .................7.0 to +0.5 V
Ground Voltage Differential ................................. 0.5 to +0.5 V
Input Voltage
Analog Input Voltage .............................................. +0.5 V to VEE
Reference Input Voltage ......................................... +0.5 V to VEE
Digital Input Voltage ............................................... +0.5 V to VEE
Reference Current VRT to VRB ............................................ 35 mA
Output
Digital Output Current ............................................. 0 to 28 mA
Temperature
Operating Temperature, ambient .......................... 25 to +85
case ...............................................................................   +125
junction ...........................................................................  +150
Lead Temperature, (soldering 10 seconds) .....................  +300
Storage Temperature ...........................................  65 to +150

Note: 1. Operation at any Absolute Maximum Rating is not implied. See Electrical Specifications for proper nominal applied conditions in typical applications.


Description

The SPT7755 is a full parallel (flash) analog-to-digital converter capable of digitizing full scale (0 to 2 V) inputs into
eight-bit digital words at an update rate of 750 MSPS. The ECL-compatible outputs are demultiplexed into two separate output banks, each with differential data ready outputs to ease the task of data capture. The SPT7755's wide input bandwidth and low capacitance eliminate the need for external track-and-hold amplifiers for most applications. A proprietary decoding scheme reduces metastable errors to the 1 LSB level. The SPT7755 operates from a single 5.2 V supply, with a nominal power dissipation of 5.5 W.

The SPT7755 is available in an 80-lead surface-mount MQuad package over the industrial temperature range (25  to +85 ) and in die form.
