SI4836DY

MOSFET 12V 13A 1W

product image

SI4836DY Picture
See larger image
SeekIC No. : 00165031 Detail

SI4836DY: MOSFET 12V 13A 1W

SI4836DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4836DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 12 V
Gate-Source Breakdown Voltage : +/- 8 V Continuous Drain Current : 17 A
Resistance Drain-Source RDS (on) : 3 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Gate-Source Breakdown Voltage : +/- 8 V
Resistance Drain-Source RDS (on) : 3 mOhms
Drain-Source Breakdown Voltage : 12 V
Continuous Drain Current : 17 A
Package / Case : SOIC-8 Narrow


Features:

·  TrenchFET Power MOSFET
·  PWM Optimized
·  100% RG Tested


Application

·  Low Voltage Synchronous Rectfication
·  Low Voltage LDO Pass Transistor


Pinout

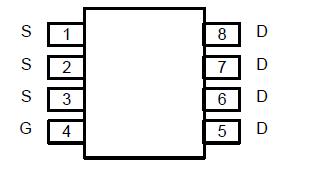

Connection Diagram


Specifications

Parameter Symbol Channel-1 Channel-2 Unit
10 secs Steady State
Drain-Source Voltage VDS 12 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID 25 17 A
TA = 70°C 20 13
Pulsed Drain Current(10 s Pulse Width) IDM 60
Continuous Source Current (Diode Conduction)a IS 2.9 1.3
Maximum Power Dissipationa TA = 25°C PD 3.5 1.6 W
TA = 70°C 2.2 1
Operating Junction and Storage Temperature Range TJ, Tstg 55 to 150 °C
