SI9428DY

MOSFET 20V 6A 2.5W

product image

SI9428DY Picture
See larger image
SeekIC No. : 00164876 Detail

SI9428DY: MOSFET 20V 6A 2.5W

SI9428DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI9428DY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 20 V
Gate-Source Breakdown Voltage : +/- 8 V Continuous Drain Current : 6 A
Resistance Drain-Source RDS (on) : 30 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Continuous Drain Current : 6 A
Gate-Source Breakdown Voltage : +/- 8 V
Package / Case : SOIC-8 Narrow
Resistance Drain-Source RDS (on) : 30 mOhms


Pinout

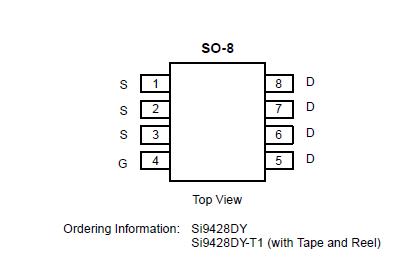

Connection Diagram


Specifications

Parameter
Symbol Limit Unit
Drain-Source Voltage VDS 20 V
Gate-Source Voltage VGS ±8
Continuous Drain Current (TJ = 150)a TA = 25 ID 6 A
TA = 70 4.8
Pulsed Drain Current IDM 20
continuous Source Current (Diode Conduction)a IS 1.7
Maximum Power Dissipationa TA = 25 PD 2.5 W
TA = 70 1.6
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
