General Description
TLE4305 General Description
The TLE 4305 G is specifically designed to control the output voltage and the output current of a switch mode power supply. Independent compensation networks for the voltage- and for the current-loop can be realized by external circuitry.
The device contains a high accuracy bandgap reference voltage, two operational trans conductance amplifier (OTA), an opto-coupler driver output stage and an high-voltage bias circuit.
The device is based on Infineons double isolated power line technology DOPL which allows to produce high precision bipolar voltage regulators with breakdown voltages up to 45 V.
TLE4305 Maximum Ratings
|
Parameter |
Symbol |
Limit Values |
Unit |
Remarks | |
|
min. |
max. | ||||
| Voltage | |||||
| Supply voltage | VS |
-0.3 |
45 |
V |
|
| Input Voltage | VVSE; VCSE; VCRE |
-0.3 |
7 |
V |
|
| Output voltages | VOUT; VVCO; VCCO |
-0.3 |
7 |
V |
|
| Current | |||||
| Output current | IOUT |
-5 |
3 |
mA |
|
| Output current | IVCO; ICCO |
-0.5 |
0.5 |
mA |
|
| ESD-Protection | |||||
| Human Body Model | VESD |
-2000 |
2000 |
V |
according to MIL STD 833 D |
| Temperatures | |||||
| Junction temperature | Tj |
-40 |
150 C |
||
| Storage temperature | Tstg |
-50 |
150 |
||
| Thermal Resistances | |||||
| Junction ambient | Rthj-a |
|
200 |
K/W |
|
Note: Stresses above those listed here may cause permanent damage to the device.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
TLE4305 Features
• Wide supply voltage operation range
• Wide ambient temperature operation range
• Minimized external circuitry
• High voltage regulation accuracy
• High current limit regulation accuracy
• Low temperature drift
• Independent voltage- current-loop compensation
• Internal fixed amplification
• Fully temperature compensated current- and voltage OTA (operational transconductance amplifier)
• SMD package
• Industrial type
• Wide ambient temperature operation range
• Minimized external circuitry
• High voltage regulation accuracy
• High current limit regulation accuracy
• Low temperature drift
• Independent voltage- current-loop compensation
• Internal fixed amplification
• Fully temperature compensated current- and voltage OTA (operational transconductance amplifier)
• SMD package
• Industrial type
TLE4305 Connection Diagram
TLE 4307 DV33
PDF/DataSheet Download
- Datasheet: TLE 4307 DV33
- File Size: 90789 KB
- Manufacturer:
- Click here to Download
- ·TLE 4307 DV38
- Power-Charge-Pump and Low-Drop Voltage Regulator
- 90789 KB
- ·TLE 4726 G
- 2-Phase Stepper-Motor Driver
- 264995 KB
- ·TLE 4729
- Siemens Semiconductor Group
- 2-Phase Stepper-Motor Driver(两相步进式马达驱动器)
- 228276 KB
- ·TLE 5205
- Siemens Semiconductor Group
- 5-A H-Bridge for DC-Motor Applications(5A、H桥型直流电机驱动器)
- 275380 KB
- ·TLE 5208-6
- Siemens Semiconductor Group
- 1-A Hex-Half-Bridge / Double Six-Driver For Automotive and Industrial Motion Control Applications(1A、十六半桥/双六-驱动器（六高边、六低边）用于汽车和工业的动作控制)
- 235168 KB
- ·TLE 5209
- Siemens Semiconductor Group
- H-Bridge for DC-Motor Applications(H桥直流电机驱动器)
- 213756 KB
- ·TLE 5250
- Siemens Semiconductor Group
- 2.5-A High Performance Smart Power Stepper-Motor Driver with Diagnostic Interface(2.5A 高性能步进电机驱动器(带诊断接口))
- 145972 KB
- ·TLE 6258
- Siemens Semiconductor Group
- Single-Wire-Transceiver(单线收发器，协议控制器和物理地址之间的接口)
- 174389 KB
TLE4305 Relative Products
TLE4299GM

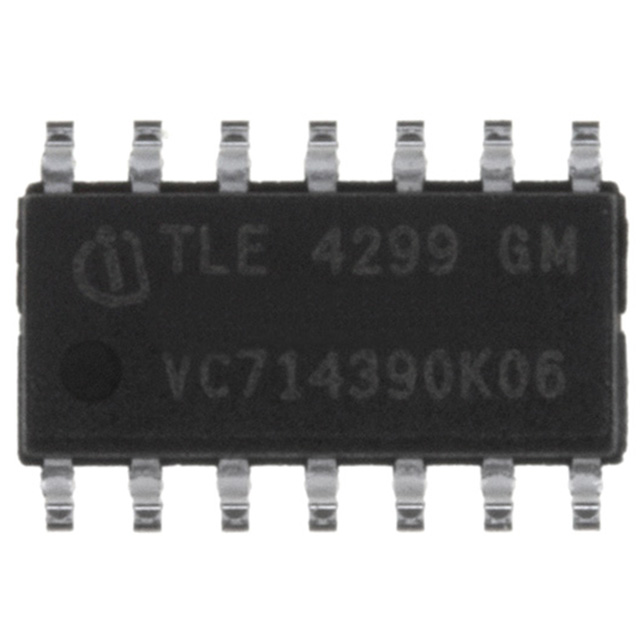

The TLE4299GM is a monolithic voltage regulator with fixed 5-V output, supplying loads up to 150 mA. It is especially designed for applications that may not be powered down while the motor is off. It only needs a quiescent current of typical 65 A. In additi...
